Understanding Packet Type Identification in Promiscuous Mode: A Guide

Wireshark Packet Capture and Common Protocol Analysis

1. Common Protocol Packets

Double click the network card and packet capture starts automatically

1.2 Introduction to Promiscuous Mode

How to Disable and Enable Promiscuous Mode

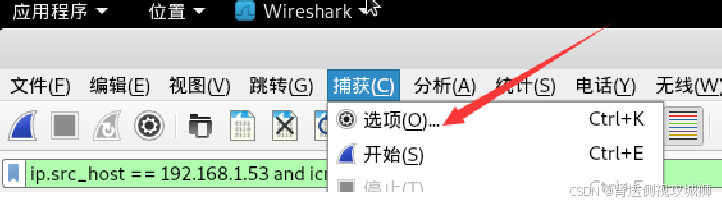

Click on “Capture”— “Options” in the program toolbar

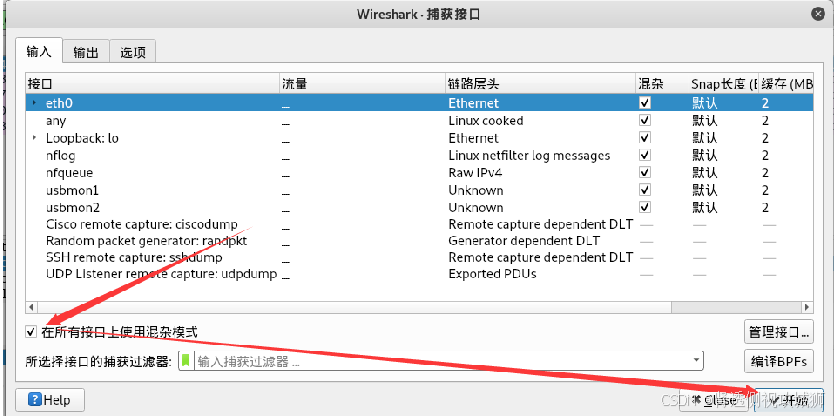

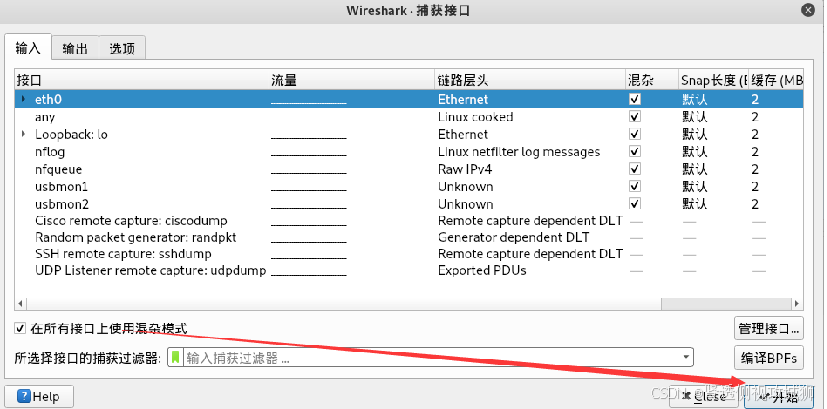

In the “Output” settings section of the options setup interface, check “Use promiscuous mode on all interfaces” for Packet type identification.

This enables it. By default, promiscuous mode is enabled.

1.3 Using the Wireshark Filter

Next, we open a browser and visit Baidu.

After visiting, click stop capture, we don’t need too many packets.

There are many packets visible, but how can we find the corresponding packet type?

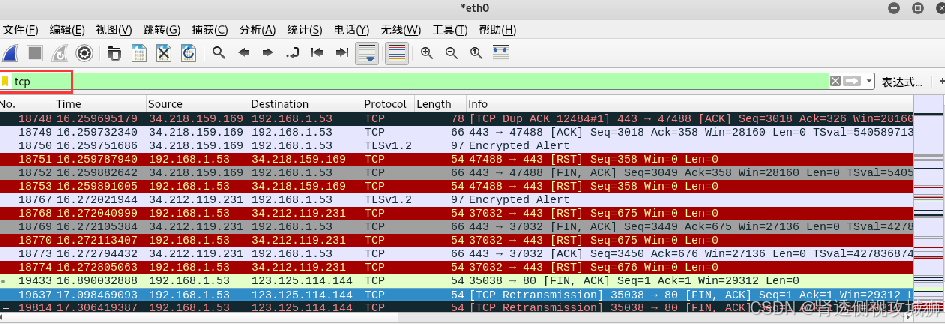

Example 1: Using a Filter to Screen TCP Packets

Note:

Example 2: Using a Filter to Screen ARP Packets

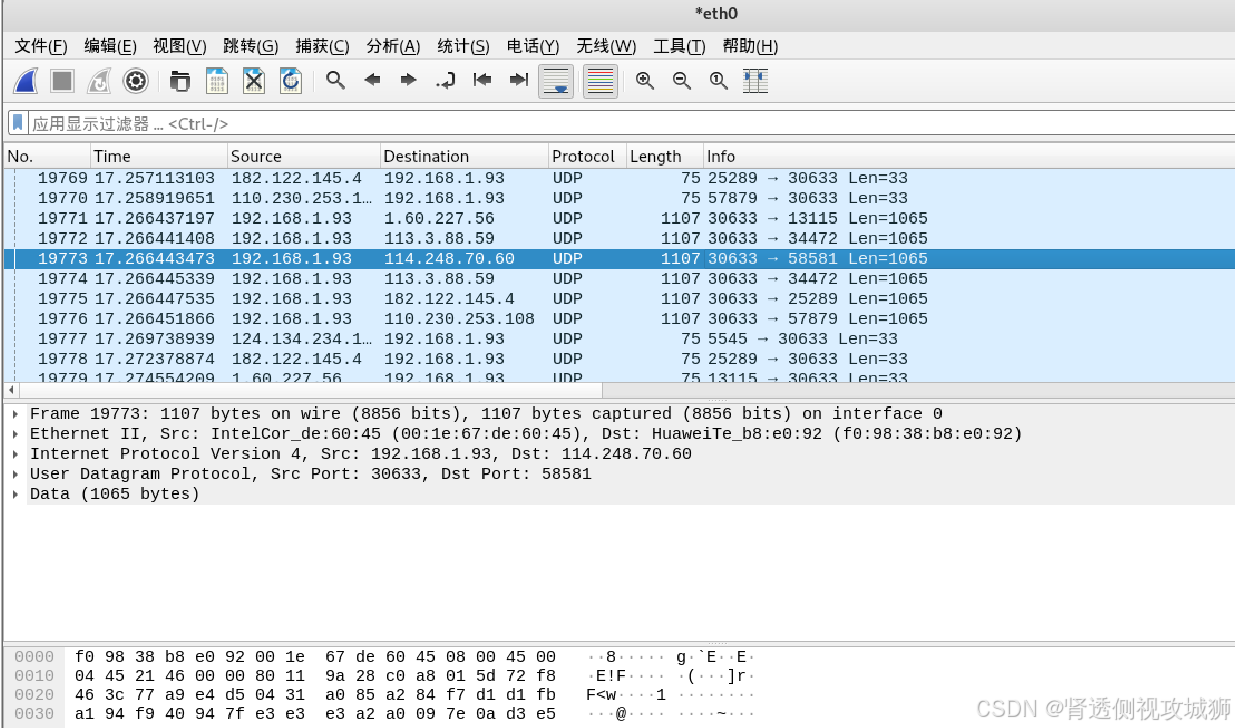

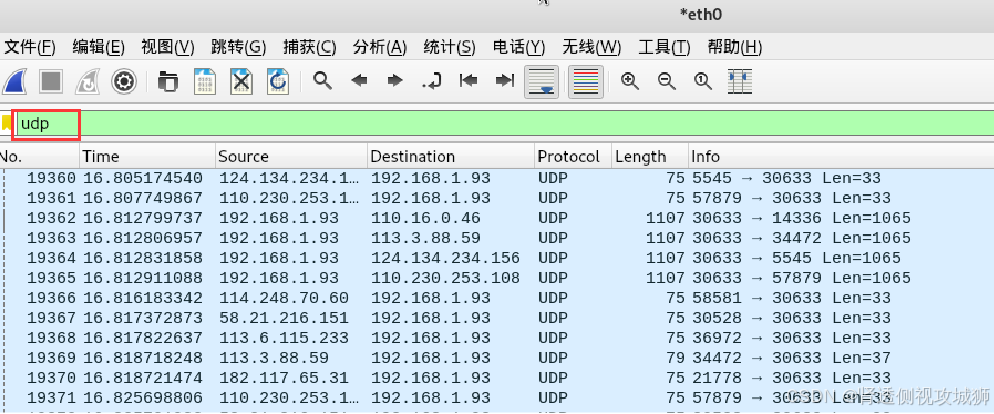

Example 3: Using a Filter to Screen UDP Packets

Extensions:

Example 4: Using a Filter to Screen HTTP Packets

Example 5: Using a Filter to Screen DNS Packets

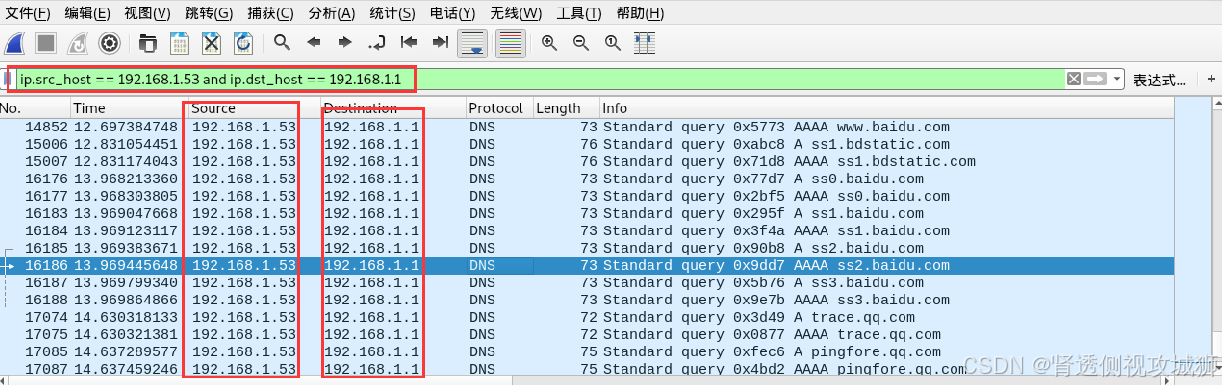

Example 6: Packet type identification filter where the source address is 192.168.1.53 or the destination address is 192.168.1.1

Then modify the filter condition to:

and

2. Practical Application: Using Wireshark to Capture and Analyze Common Protocols

2.1 Common Protocol Analysis – ARP Protocol

Start capturing packets — Filter ARP

Use nmap to perform a scan based on the ARP protocol

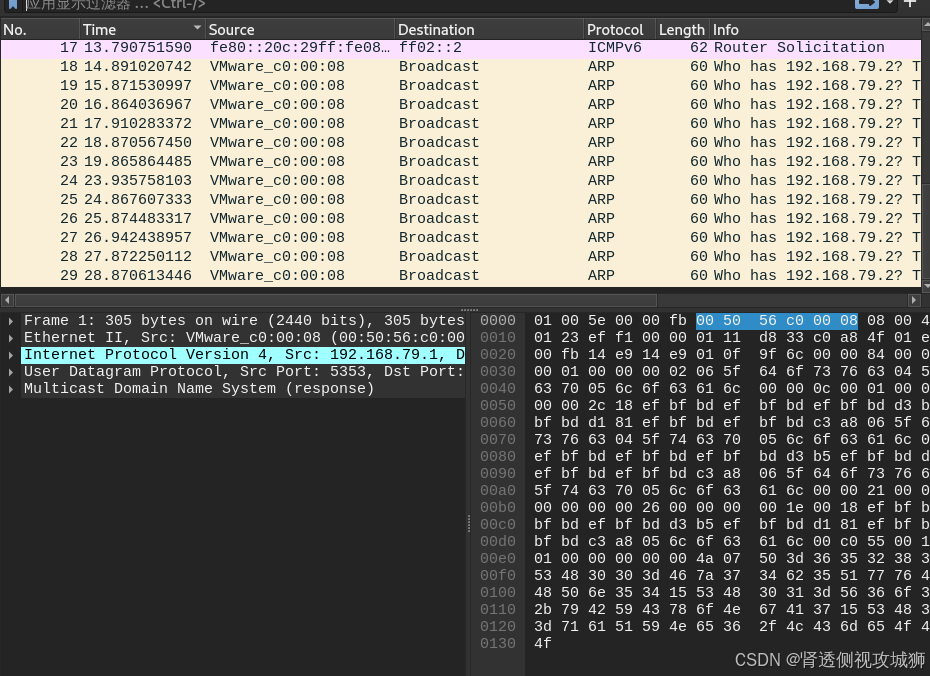

View the contents of the Address Resolution Protocol (request) ARP request packet:

Summary:

2.2 Common Protocol Analysis – ICMP Protocol

Open a terminal

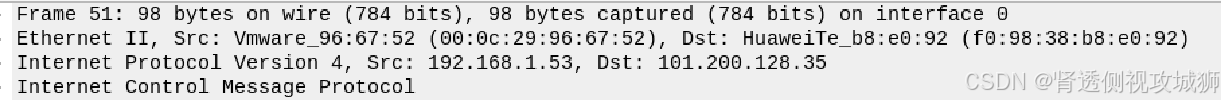

First look at the request packet content; we can see this is a Layer 4 protocol packet

Next, begin analyzing the ICMP packet: Packet type identification.

ICMP Protocol Analysis Request Packet

ICMP Protocol Analysis Reply Packet

Working Process:

2.3 Common Protocol Analysis – TCP Protocol

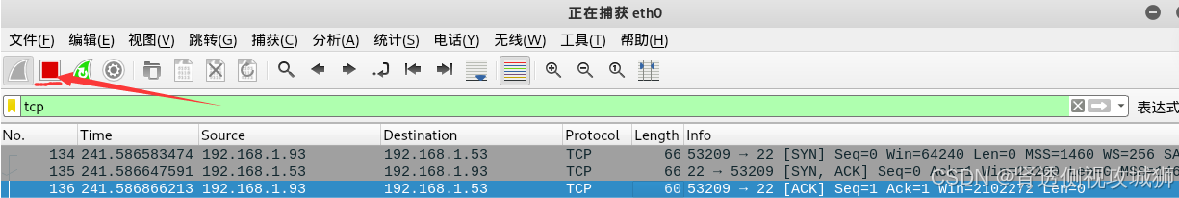

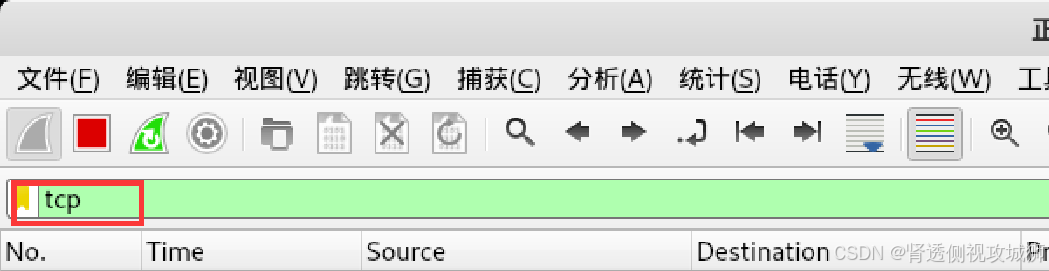

“First, clear the packets, then filter by TCP and start capturing: Packet type identification”

View the TCP Protocol:

Open the flag details

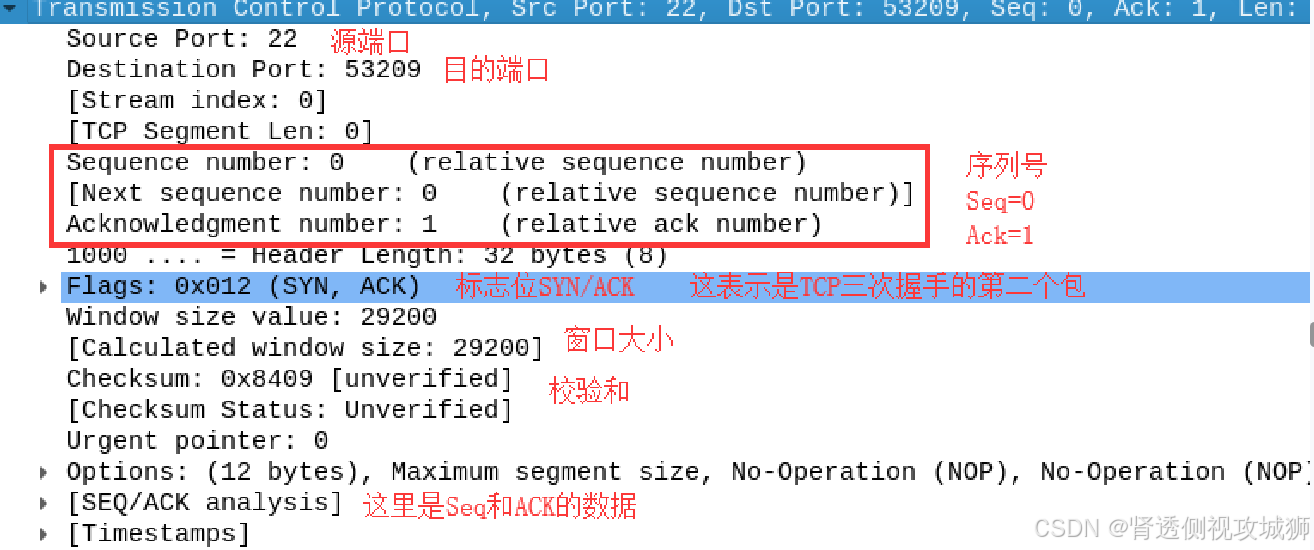

Analyze the second packet

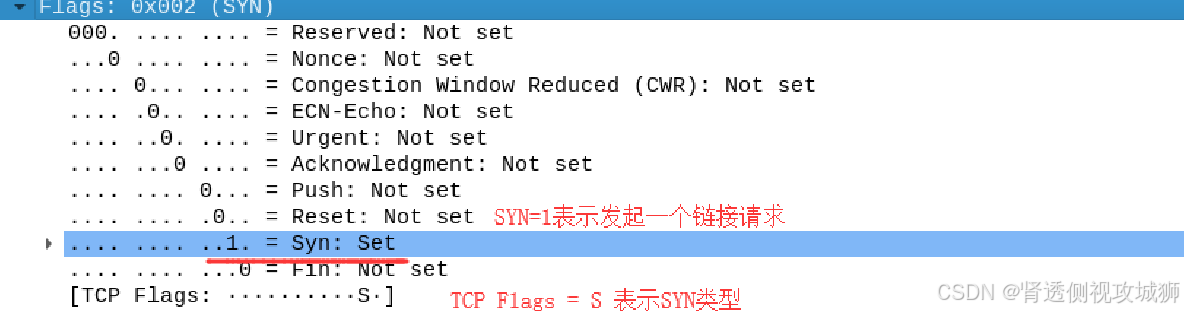

Flags Information

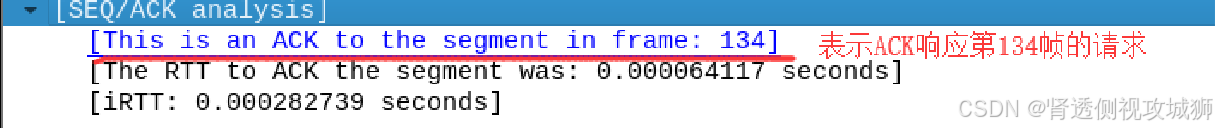

Analyze the third packet

The three-way handshake process ends here.

Generate a chart to observe the data interaction process

Full Project Analysis As Follows:

2.4 Common Protocol Analysis – HTTP Protocol

Open a terminal and enter the following command

About curl

The 4th and the 6th are our HTTP packets

Complete Process Analysis:

3. Practical Application: WireShark Packet Capture to Solve a Server Being Blocked from the Internet

Extended Supplement:

Conduct Testing

Practical Packet Capture and Analysis

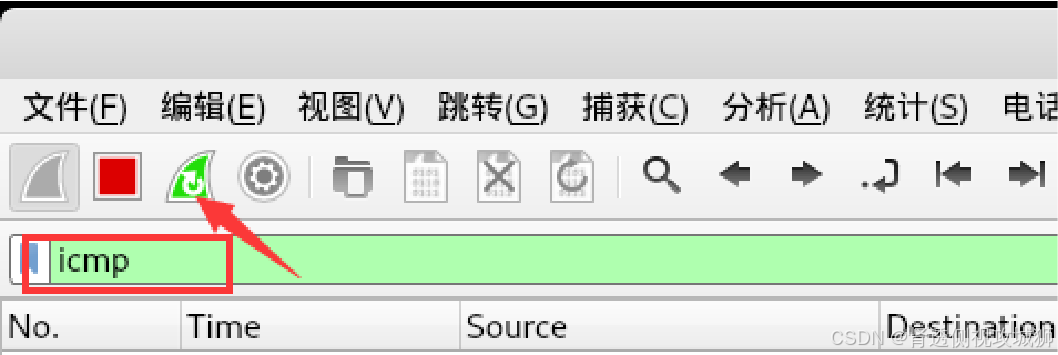

Start capturing, filter ICMP protocol

Then go back to Wireshark to view the packets

What happens if you change the TTL value to 2?

Restore system kernel parameters

Example: Detect communication quality to all nodes of xuegod.cn

You can see there are 12 hops from my current host to the target host [xuegod.cn].
