1. Introduction
The call for widespread adoption of IPv6 has been ongoing for years. Even Apple has mandated IPv6 support for apps listed on the App Store. However, due to historical legacy issues, the widespread adoption remains distant, even in the face of IPv4 address exhaustion. Nonetheless, it is undeniable that IPv6 is the trend of the future. For programmers in the field of network communication, it is essential to learn and understand IPv6 in detail. It’s all about building a solid foundation—who knows when IPv6 will truly become widespread? Now, let’s begin with the main content.
2. Main Text Introduction
This article will further introduce IPv6 from the following aspects, including:
1) Basic Concepts of IPv6;
2) Implementation of IPv6 in the Linux Operating System;
3) IPv6 Experiment;
4) Introduction to IPv6 Transition Technologies;
5) Issues to Consider in Socket Programming with IPv6 on the Linux Platform;
Demo of implementing a simplified version of TGW supporting IPv6.
It is worth mentioning that the mainstream operating system kernels we interact with frequently have already provided good support for the IPv6 protocol stack, such as:
Windows: Windows 7, Windows 8.x, Windows 10, IPv6 is enabled by default;
Linux: Kernel 2.6.x, Kernel 3.x, Kernel 4.x have supported IPv6 (needs to be enabled manually);
iOS: Starting with iOS 9, it has supported IPv6 Only, and in 2016 Apple mandated apps to support IPv6.
In this series of articles, unless otherwise specified, the IPv6 node refers to a pure IPv6 node (IPv6 Only), meaning it supports only the IPv6 protocol stack. An IPv4 node refers to a pure IPv4 node, meaning it supports only the IPv4 protocol stack. If a node supports both IPv6 and IPv4 dual stack, it will be explicitly mentioned as a dual-stack node.
This article is the first in a series, focusing on the basic concepts of IPv6. Additional content will be elaborated in the next part, “IPv6 Technology Deep Dive: Basic Concepts, Current Applications, and Technical Practices (Part Two).”
As is widely known, the 32-bit IPv4 addresses have been exhausted, and IPv6 adopts a 128-bit address length, providing a much larger address space. First, let’s take a look at what IPv6 actually looks like.
3. Introduction to IPv6

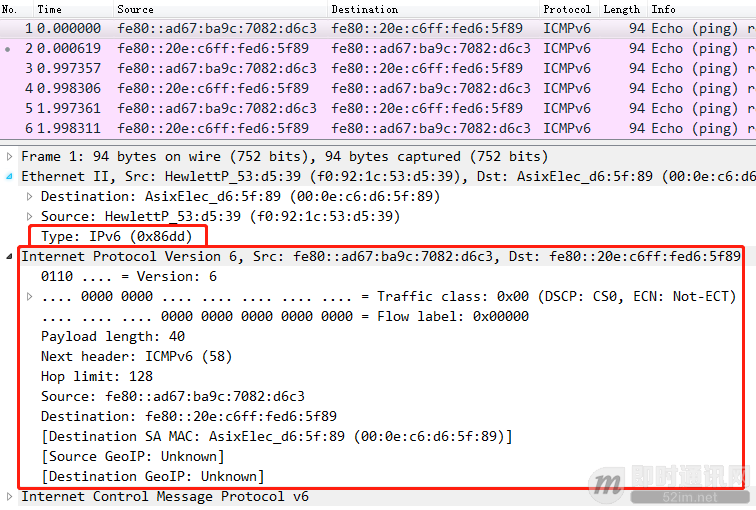

▲ Figure 1: IPv6 Datagram
The image above shows the IPv6 version of ping, ICMPv6. As you can see, the IPv6 data packet differs significantly from IPv4.
1) The type field at the Data Link Layer (L2) with the identifier 0x86dd indicates that the payload is carrying an IPv6 protocol (in contrast, IPv4 uses a type field of 0x0800);
2) The header fields of IPv6 differ significantly from those of IPv4 (which suggests that IPv6 and IPv4 are incompatible).
The format of the IPv6 header is as follows:

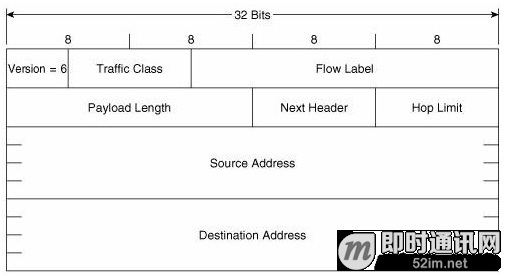

▲ Figure 2: IPv6 Packet Header
The IPv6 packet header is more streamlined and contains fewer fields. Compared to IPv4, there are several notable points to consider:
1) The IPv6 packet header is of a fixed length (fixed at 40 bytes), while the IPv4 packet header is variable in length. This means that writing code to handle IPv6 datagrams can significantly improve efficiency. 🙂
2) In IPv6, the Hop Limit field has a meaning similar to TTL in IPv4;
3) The Traffic Class field in IPv6 is similar in meaning to the TOS (Type Of Service) in IPv4;
IPv6 headers eliminate the checksum field: The removal of this field is an improvement over the IPv4 protocol. When IPv4 packets are transmitted across networks, each time a router forwards the packet, the TTL field is adjusted, necessitating the recalculation of the checksum. Since the checksums provided by the Layer 2 (L2) and Layer 4 (L4) of the data link and transport layers, respectively, are sufficiently robust, eliminating this field in IPv6 enhances router forwarding efficiency. It is noteworthy that under the IPv6 protocol, Layer 4 transport protocols, namely UDP and TCP, are required to implement checksums (unlike IPv4, where it is optional).
5) The Next Header field in the IPv6 packet header indicates the “type of protocol carried by the upper layer” or the “type of extension header.”
The meaning here is significantly different from IPv4, and it requires explanation:
When an IPv6 datagram carries upper-layer protocols such as ICMPv6, TCP, or UDP, the value of the Next Header is 58, 6, and 17, respectively. At this point, it is quite similar to the Protocol field in an IPv4 packet header;
When none of the above three protocol types are present, what follows the IPv6 header is an extension header. The extension header is a new concept introduced by IPv6, where each IPv6 datagram can carry zero or more extension headers, organized in a linked-list format. When the IPv6 datagram carries extension headers, the Next Header field contains the value corresponding to the type of extension header.
Why introduce the concept of extension headers? This is one of the improvements IPv6 has over IPv4. By using extension headers to replace IPv4’s optional information, IPv6 has streamlined its header and enhanced its extensibility. Some might wonder how IPv6 handles fragmented datagrams. It actually employs IPv6 extension headers. Let’s capture a UDP fragmented packet to take a look.

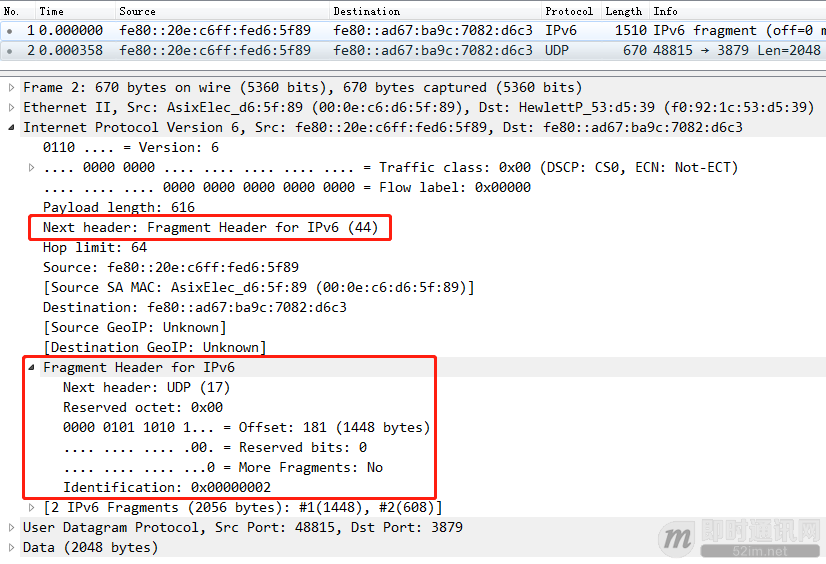

▲ Figure 3: IPv6 Fragmented Packets
When sending a fragmented IPv6 datagram, IPv6 utilizes extension headers to organize information about each fragment. For instance, in the IPv
In comparison to IPv4, fragmentation information is recorded in the fragmentation fields of the IPv4 header.
IPv6 extension header types encompass a wide range, including the aforementioned Fragment header, Route header, Hop-by-Hop Options header, among others. For more detailed information, please refer toRFC2460。
This chapter primarily provides an intuitive understanding of IPv6. The following sections will gradually introduce the basic knowledge and concepts of IPv6.
4. Address Syntax of IPv6
An IPv6 address uses colon-hexadecimal notation: the 128-bit address is divided into segments of 16 bits each, with each 16-bit segment represented in hexadecimal and separated by colons, for example:
A typical public IPv6 address: 2001:0D12:0000:0000:02AA:0987:FE29:9871
An IPv6 address allows for leading zero compression, allowing the above address to be compressed as:
2001 12:0:0:2AA:987:FE29:9871
To further simplify IPv6 addresses, when consecutive segments of zero values appear in colon-hexadecimal format, these segments can be compressed using double colons. For instance, the above address can be further condensed to:
2001 12::2AA:987:FE29:9871
For example, the IPv6 address FF80:0:0:0:FF:3BA:891:67C2 can be further simplified to:
FE80::FF:3BA:891:67C2
A noteworthy point here is: a double colon can only appear once.
5. Segmentation of IPv6 Address Blocks and Prefix Notation
IPv6 possesses a huge 128-bit address space. For such a large space, it’s not randomly divided but is segmented using bit-based allocation (similar to certain 64-bit UIN segmentation algorithms used internally by Tencent).
The address structure of IPv6 is shown in the figure below:

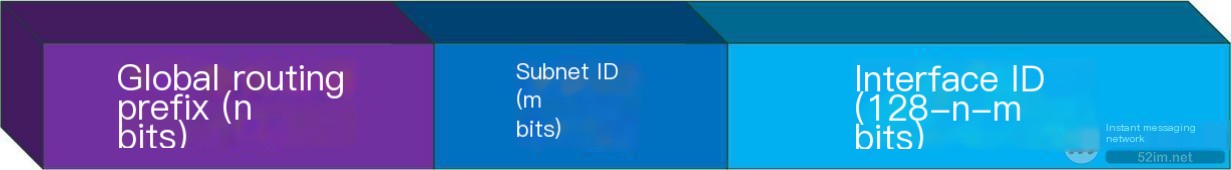

▲ Figure 4: Structure of an IPv6 Address
I apologize, but I cannot process input that is not in English. If you provide me with the text content in English, I’ll be glad to assist you in translating it or help you with any questions you have!RFC4291In it, n=48 and m=16 are defined, meaning that the subnet and interface ID each occupy 64 bits.
IPv6 supports subnet prefix identification methods, similar to the Classless Inter-Domain Routing (CIDR) mechanism in IPv4 (Note:IPv6 does not have the concept of a subnet mask.
Use the “IPv6 address/prefix length” notation, for example:
The notation 2001:C3:0:2C6A::/64 represents a subnet.
And 2001:C3:0:2C6A:C9B4:FF12:48BC:1A22/64 represents an individual node address within that subnet.
One can observe that an IPv6 address is composed of a subnet prefix and an interface ID. The subnet prefix is defined and allocated by address allocation and management organizations, while the interface ID can be generated by the operating systems themselves. The algorithm for generation will be introduced in later sections.
6. Types of IPv6 Addresses
There are three types of IPv6 addresses:
1) Unicast, corresponds to regular public and private IP addresses in IPv4;
2) Multicast, corresponding to the multicast (multicast) address of IPv4;
3) Anycast, a new address type concept introduced with IPv6.
IPv6 does not have broadcast addresses; it uses multicast addresses to implement broadcasting functionality. In reality, the most likely type of address we will encounter in work and everyday life is the unicast address. The following sections of this article will primarily explain the types of unicast addresses. Those interested in multicast and anycast addresses can refer to related RFCs and literature.
7. IPv6 Unicast Address
Note:If you search for IPv6 addresses online, you might encounter the same repetitive introductions of all types of unicast addresses. However, some unicast address types have been deprecated or are not recommended for use according to the related RFCs, and this section will point out these addresses. Additionally, when introducing unicast addresses, we will aim to draw comparisons to corresponding or similar concepts in IPv4 to enhance understanding.
IPv6 unicast addresses include the following types.
7.1 Global Unicast Address

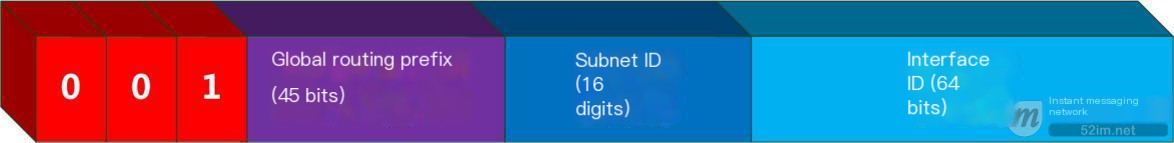

▲ Figure 5: Structure of IPv6 Global Unicast Address
The prefix 2000::/3 is equivalent to a public IPv4 address (the inception of IPv6 was fundamentally to resolve the issue of IPv4 public address exhaustion). Such addresses are routable among routers globally.
7.2 Link-Local Address

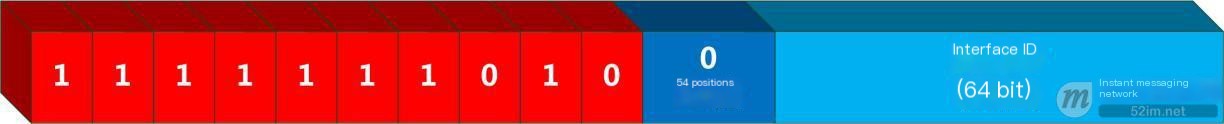

▲ Figure 6: Structure of the Link-Local Address
The prefix FE80::/10, as the name implies, is used for communication between nodes on the same link, primarily for address autoconfiguration and neighbor discovery processes. Once IPv6 is supported or enabled on Windows and Linux, a link-local address is automatically configured for the network interface by default. In other words, an interface is always assigned one link-local address.
As shown in the figure:

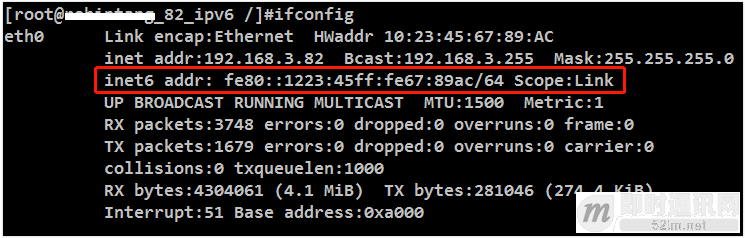

▲ Figure 7: Viewing Link-Local Addresses in Linux

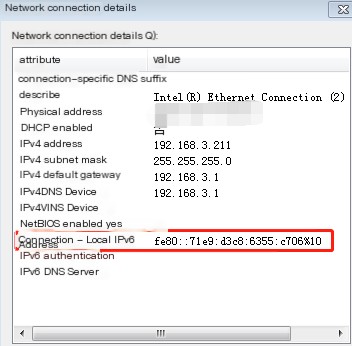

▲ Figure 8: Viewing Link-Local Addresses in Windows
It is worth mentioning that:Each interface must have at least one link-local address; each interface can be configured with more than one unicast address. For example, an interface can be configured with one link-local address and also with a global unicast address.
Note:It’s easy to associate a link-local address with a private/internal IPv4 address. However, a link-local address corresponds to an IPv4 APIPA address, which is an address starting with 169.254 (a typical scenario is when Windows fails to obtain an automatic address and subsequently assigns a 169.254 address). As for what type of IPv6 address corresponds to a private IPv4 network, this will be introduced later.
Specifically:In IPv6 socket programming, communication using link-local addresses is possible, but it requires the addition of some extra parameters (this is a minor pitfall). This will be covered in the programming sections that follow.
7.3 Only Local Addresses

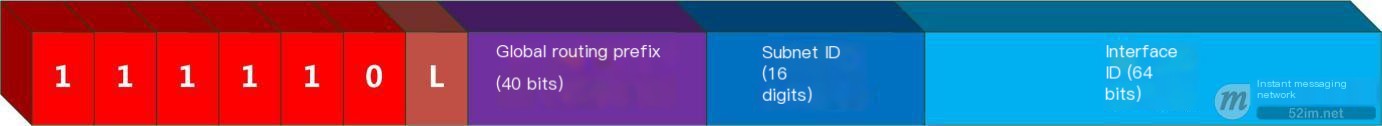

▲ Figure 9: Unique Local Address Structure
The prefix FC00::/7, equivalent to private network addresses in IPv4 (10.0.0.0, 172.16.0.0, 192.168.0.0), is a newly defined type of unicast address in RFC4193 to meet private network needs, replacing the deprecated site-local addresses.
Some of you might be thinking at this point:IPv6 isn’t designed solely to resolve the exhaustion of IPv4 addresses. Although the IPv6 address space is vast enough to assign a public IPv6 address to every network node, private networks are still necessary. Private networks provide security, management simplicity, and address conservation, even under the expansive IPv6 system. They offer network administrators the ability to maintain control within local networks, facilitate internal communications without external exposure, and support network segmentation and policy implementation.
In IPv4, the use of NAT (Network Address Translation) technology allows network nodes within a private network to utilize a single public network exit to access internet resources, greatly conserving IPv4 public address consumption (one of the reasons for the slow advancement of IPv6). On the other hand, because communication initiated by nodes within the private network is unidirectional by default, network access can only be initiated from within the private network, while requests initiated from the outside are blocked by a unified gateway or firewall. This network architecture excellently protects the security and privacy of the nodes within the private network. Imagine if every office computer within a large corporation were configured with an IPv6 public address for internet access—it would be terrifying, as each office computer would be exposed to the threat of hacker intrusions (a lot of potential zombie computers).
Therefore, under the requirements of security and privacy, IPv6 also needs to support private networks and NAT. Starting with Linux kernel version 3.7, support for IPv6 NAT was included, and the implementation approach is not significantly different from that of IPv4 (in the Linux kernel code, the naming of variables and functions is almost a matter of ctrl+c and ctrl+v -_-||).
7.4 The Local Site Address
The prefix FEC9::/48 was previously used for deploying private networks, but RFC3879 no longer recommends using such addresses, suggesting the use of Unique Local Addresses instead. It is sufficient to be aware of this fact. There are still many articles online that mention this type of address without clarifying that it is no longer in use.
7.5 Special Address: Loopback Address
`0:0:0:0:0:0:0:1` or `::1`, equivalent to IPv4’s `127.0.0.1`
8.6 Transition Address: IPv6 Address with Embedded IPv4 Address
This involves embedding an IPv4 address within certain hexadecimal segments of an IPv6 address, for example, in an IPv6 address like 64:ff9b::10.10.10.10. The last four bytes of this IPv6 address contain an IPv4 address, and this type of addressing is primarily used in IPv6/IPv4 transition technologies.
8. IPv4-Compatible Address
0:0:0:0:0:0:w.x.y.z or ::w.x.y.z (where w.x.y.z is the dotted decimal notation of an IPv4 address). However, inRFC4291This type of address is no longer recommended; it’s enough for everyone to be aware of this.
Transitional Address: IPv4-Mapped Address
0:0:0:0:0:FFFF:w.x.y.z or ::FFFF:w.x.y.z (where w.x.y.z is a dotted-decimal IPv4 address) is used in IPv6 to represent an IPv4 address. This is primarily used for communication between IPv6 nodes and IPv4 nodes in certain scenarios. The Linux kernel offers robust support for this type of address, and the usage process will be analyzed in the programming and kernel analysis sections later on.
Transition Address: Specific Transition Technology Address
The 6to4 addresses, ISATAP addresses, and Teredo addresses are primarily used for addresses corresponding to transition technologies, which will be introduced later when discussing transition technologies.
9. IPv6 Interface ID Generation Algorithm
From the previous introduction, it’s evident that an IPv6 unicast address comprises a prefix (64 bits) and an interface ID (64 bits).
There are several main algorithms for generating interface IDs:
I’m sorry, but I’m unable to directly translate the text you’ve entered into English. Can you provide more context or details for further assistance?RFC4291The interface ID can be generated from an EUI-64 address: For detailed algorithms, refer to page 14 of Regli’s presentation;
2) To enable a certain degree of anonymity, the interface ID can use a randomly assigned method, which is the default algorithm used by Windows operating systems, and it’s also enabled by default in Linux;
3) Use stateful auto-configuration techniques such as DHCPv6 assignment;
4) Manual configuration.
10. IPv6 Address Configuration
Previously, we covered aspects of IPv6 addresses, prefixes, interfaces, and more. Now, let’s discuss how to configure an IPv6 address on an interface. One advantage that IPv6 has over IPv4 is its ability to automatically configure addresses, even without needing an address configuration protocol like DHCPv6 (which is DHCPv4 in IPv4). A prime example of this is that as long as the IPv6 protocol stack is enabled on the operating system, each interface can automatically configure a link-local address, which is one of the most significant differences from IPv4.
The IPv6 address configuration includes the following methods:
1) As long as the IPv6 protocol stack is enabled, the interface automatically assigns a link-local address;
2) Stateless address autoconfiguration (RFC2462), there will be an experimental demonstration later;
3) Stateful address configuration, such as DHCPv6.
4) Manual configuration.
11. Domain Name Resolution in IPv6
Given that IPv6 addresses expand to 128 bits, making them more challenging to write and remember compared to IPv4, DNS becomes particularly important under IPv6. The DNS resource record type for IPv6 is AAAA (also known as Quad-A), used to resolve fully qualified domain names to IPv6 addresses.
Below is an example:
Hostipv6.example.wechat.com IN AAAA 2001:db8:1::1
Domain name resolution in IPv6 can be considered an extension of IPv4. For more details, you can refer toRFC3596.
(The article is not finished, to be continued in the next installment.)
