1. Introduction
Packet loss is a relatively common issue in Linux systems. Network problems arising from packet loss can lead to a poor user experience, making it essential to address Linux network packet loss issues. This article will introduce how to troubleshoot network packet loss in a Linux system.
2. Understanding the TCP/IP Protocol Stack

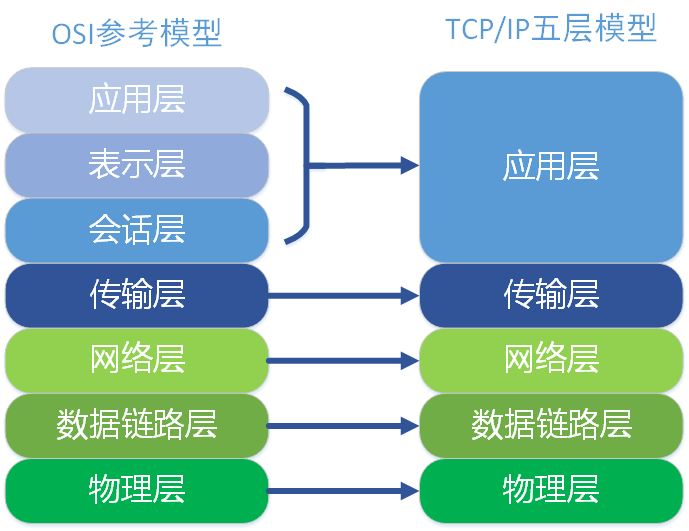

Before troubleshooting network packet loss issues, we need to understand some basic knowledge, such as the TCP/IP protocol stack. The TCP/IP protocol stack is the foundational architecture of computer networks, consisting of multiple layers. Each layer has its function, and layers communicate with each other through protocols.
From top to bottom, they are:
Understanding the TCP/IP protocol stack can help us better grasp the process of network data transmission, making it easier for us to conduct targeted analysis when troubleshooting network packet loss issues.
3. Understanding Linux Network Devices
In a Linux system, network devices are treated as files. Each network device has a unique identifier known as the device name. Common network devices include:

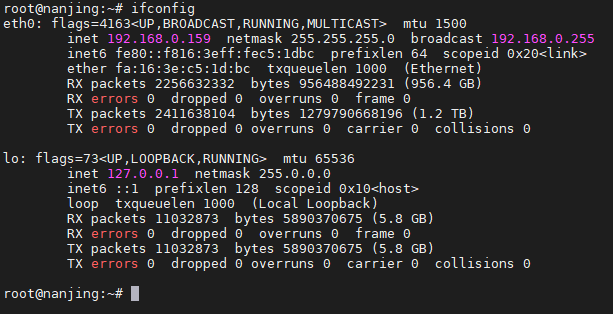

We can use the ifconfig command to view the network devices currently present in the system.
4. Using Ping to Troubleshoot Network Packet Loss
Ping is a commonly used network tool that can test the connectivity between two hosts. When we discover packet loss through ping, we need to determine which layer the issue is occurring at.
4.1. Troubleshooting Physical Layer Issues
If ping shows a large amount of packet loss, the first step is to check for physical layer issues. This includes checking whether network devices (such as switches and routers) are connected correctly and whether there is cable damage. You can check the indicator lights on network devices to see if they are functioning properly. If these issues cannot be resolved, you may need to contact the network device administrator for repairs.
4.2. Troubleshooting Data Link Layer Issues
If physical layer issues have been ruled out but ping still shows packet loss, it likely involves data link layer issues. The data link layer is responsible for transmitting data from one node to an adjacent node. When you use ping to test the connection between two hosts, the data link layer is usually handled by the Ethernet protocol. To rule out data link layer issues, try replacing different network devices and cables, ensuring they are compatible with each other.
4.3. Troubleshooting Network Layer Issues
If data link layer issues have been ruled out but ping still shows packet loss, the problem may reside in the network layer. The network layer is responsible for transmitting data from the source host to the destination host. In the TCP/IP protocol stack, the IP protocol resides in the network layer. Malfunctions in the IP protocol may lead to packet loss issues.

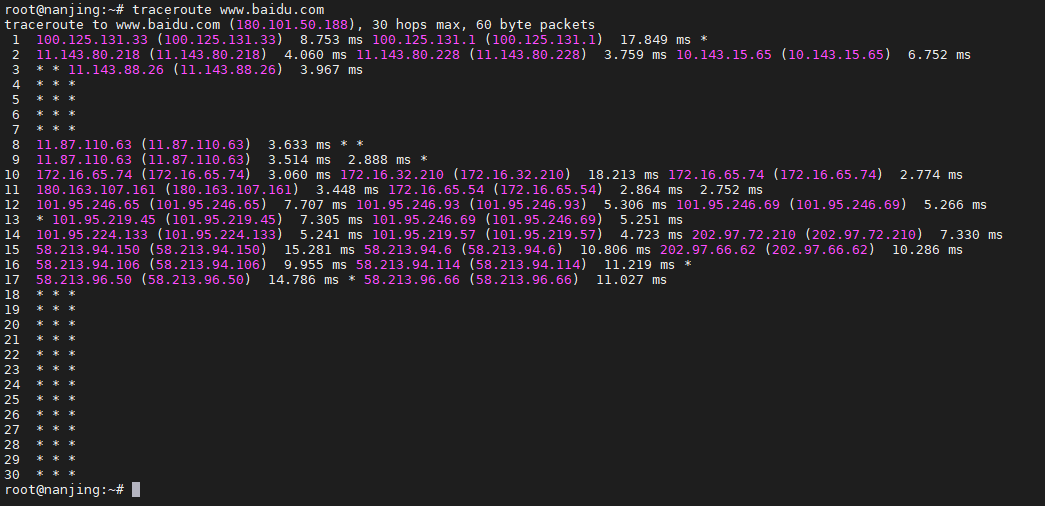

You can use the traceroute command to check for problems in the network layer. The traceroute command displays all the hosts a packet goes through during transmission, allowing us to identify which node in the network is problematic.
4.4. Troubleshooting Transport Layer Issues
If no network layer problems are found, the issue may lie in the transport layer. In the TCP/IP protocol stack, the TCP and UDP protocols reside in the transport layer. In TCP connections, packet loss may cause the connection to close. In UDP, packet loss may lead to data packet loss or disorder.

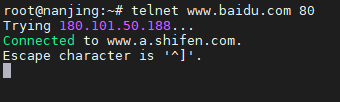

You can use the telnet command to test TCP connections. The telnet command can test the connectivity of remote host ports.
5. Using Wireshark to Analyze Network Packets
If the network packet loss problem cannot be resolved by the above steps, you need to use the Wireshark tool to analyze data packets. Wireshark is an open-source network protocol analysis tool. It can monitor packets on the network interface and sort them by protocol type and other parameters, allowing us to analyze them more conveniently.
To use Wireshark for network packet analysis, follow these steps:
When analyzing packets, you can use different filters to filter different types of packets. For example, you can use the ip.addr filter to bring out packets from a specified IP address. Use the tcp.port filter to bring out TCP packets of a specified port. Use the udp.port filter to bring out UDP packets of a specified port.
