Step-by-Step Guide to Arkime Installation and Suricata Configuration

1. Basics

For Arkime installation, refer to “The Road to Learning Arkime, the Traffic Analysis Tool (Part 1) – Installation and Deployment”. On this basis, install and configure the Suricata software.

2. Install Suricata for Arkime installation

yum install suricata

Possible dependencies include libyaml and PyYAML, which may have been installed during the Arkime installation or with other software.

3. Rules

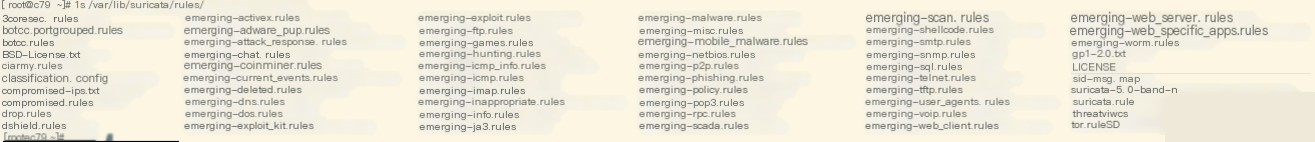

suricata-update can update the rules online. For offline installation, extract the downloaded rules file to the /var/lib/suricata/ folder,

where suricata.rules is the default configuration rule

4. Startup Command

suricata -c /etc/suricata/suricata.yaml -i$ifname&

5. Integration with Arkime

Mainly modify the Arkime configuration file, and Suricata should be started before Arkime. Modify message permissions

chmod o+r /var/log/suricata/eve.json

Modify the Arkime configuration file

sed -i "s/dropUser=nobody/dropUser=root/g" /opt/arkime/etc/config.ini

Add plugin support

sed -i "216a plugins=suricata.so" /opt/arkime/etc/config.ini
sed -i "217a suricataAlertFile=/var/log/suricata/eve.json" /opt/arkime/etc/config.ini
sed -i "218a suricataExpireMinutes=60" /opt/arkime/etc/config.ini

Restart the Arkime capture service

systemctl restart arkimecapture.service

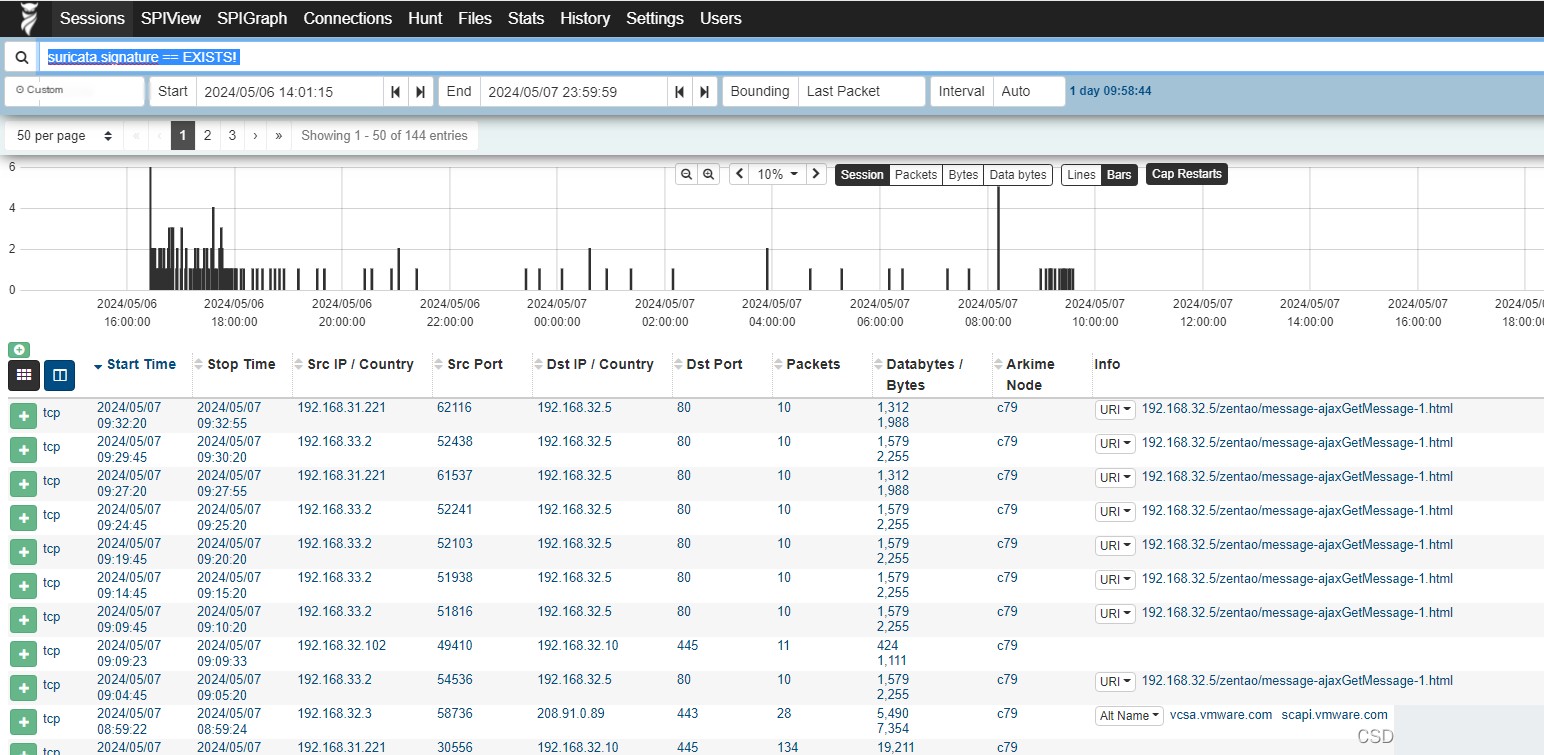

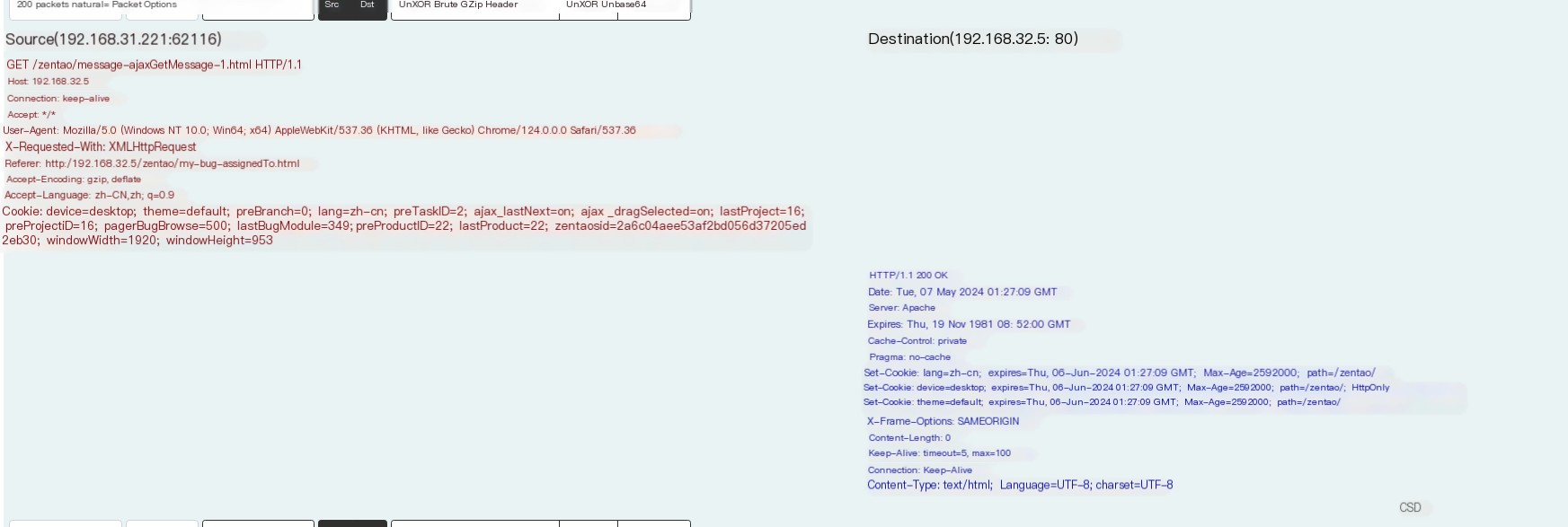

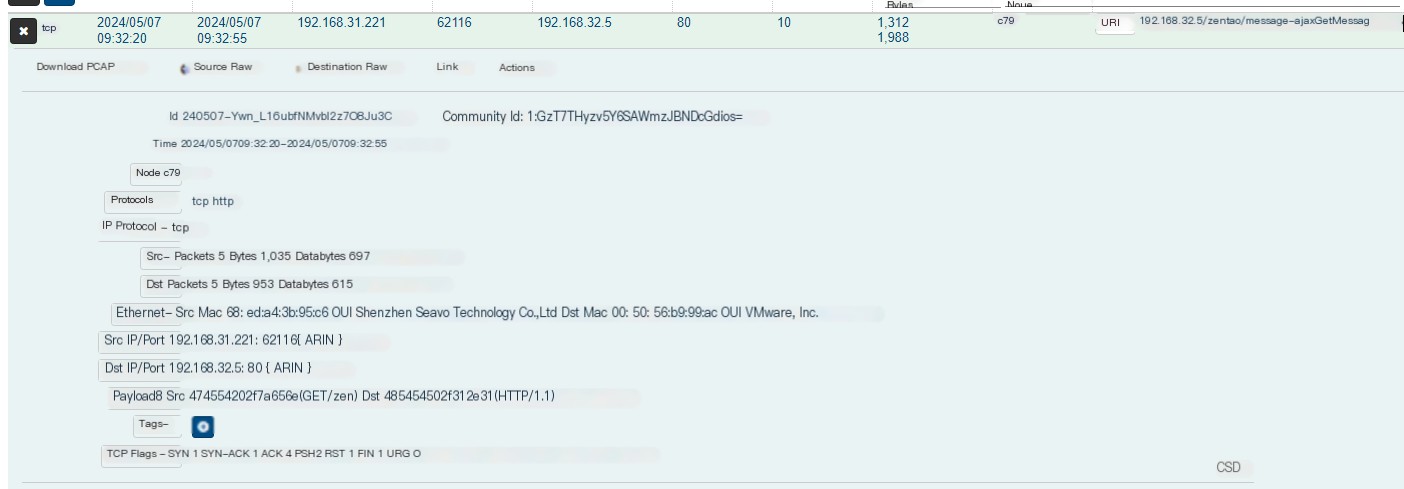

You can download packets You can see HTTP interaction content
