Research on Situational Awareness, Attack Monitoring, and Log Analysis Platforms Using OSSIM
There are no free open-source platforms available domestically, but some can be trialed, such as Xiaotian and Baidu. This research mainly focuses on foreign platforms.
There are many security log analysis platforms, but few open-source platforms integrate monitoring functions.
1. OSSIM Open Source Security Information Management System
Official Website: https://cybersecurity.att.com/products/ossim
OSSIM, also known as Security Information Management System, is a very popular, complete, and mature security architecture. OSSIM integrates security products to provide a foundational platform for security monitoring functions. The core work of the OSSIM project is to integrate and correlate information provided by various products, while also integrating related functions. It features intrusion detection, vulnerability scanning, asset management, security monitoring, log analysis, traffic analysis, and other functions.
OSSIM is an open-source SIM, and its core still relies on SIEM. The main advantage is the ability to understand the overall network threat situation in real-time through information on events, data, risks, etc.. It is a network system that quickly resolves issues from operational monitoring to pre-warning, post-alarm, and SIEM log analysis.

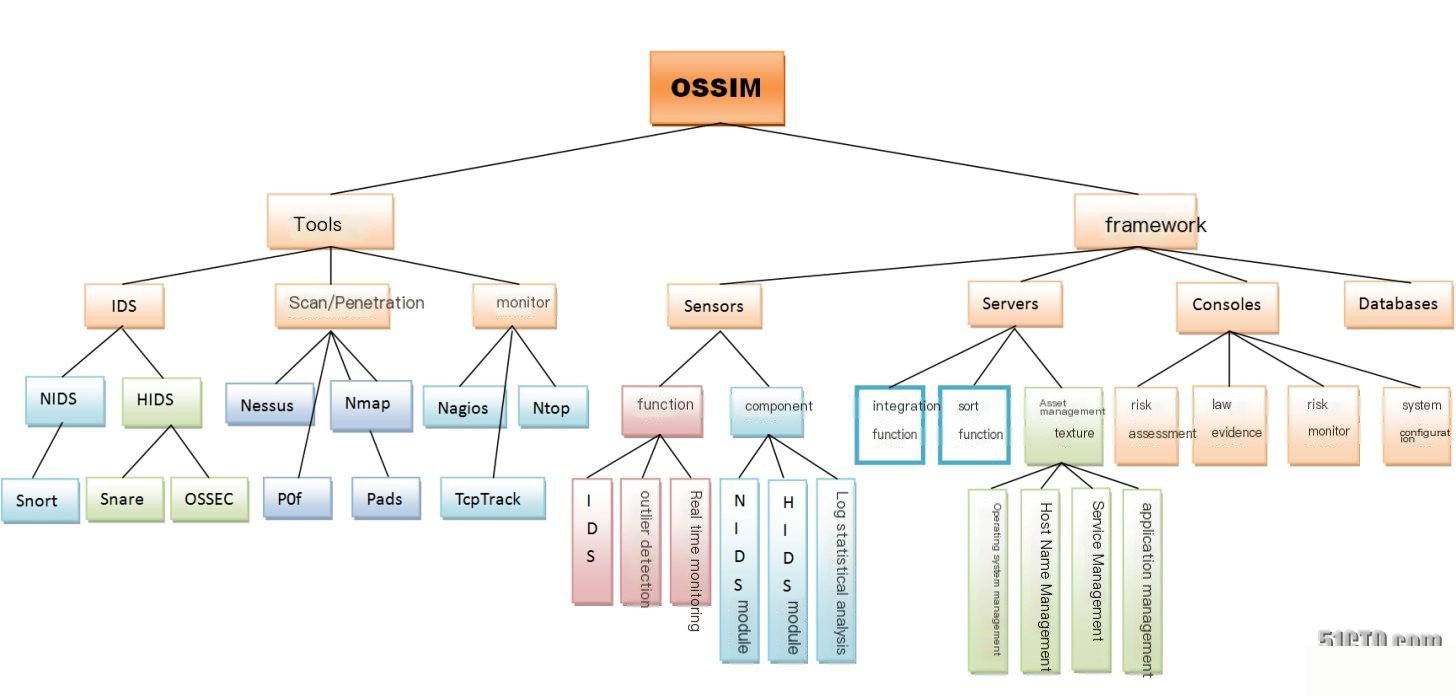

Main integrated security programs:
Snort: Intrusion Detection System
Rrdtool: System Monitoring
Nmap: Network Scanning and Sniffing Toolkit
Nessus: System Vulnerability Scanning and Analysis Software
Ntop: Network Traffic Monitoring
Nagios: System and Network Application Monitoring
Pads: Passive Network Discovery Tool
Tcptrack: TCP Connection Sniffer
ArpWatch: ARP Communication Monitoring
OSSIM Feature Display

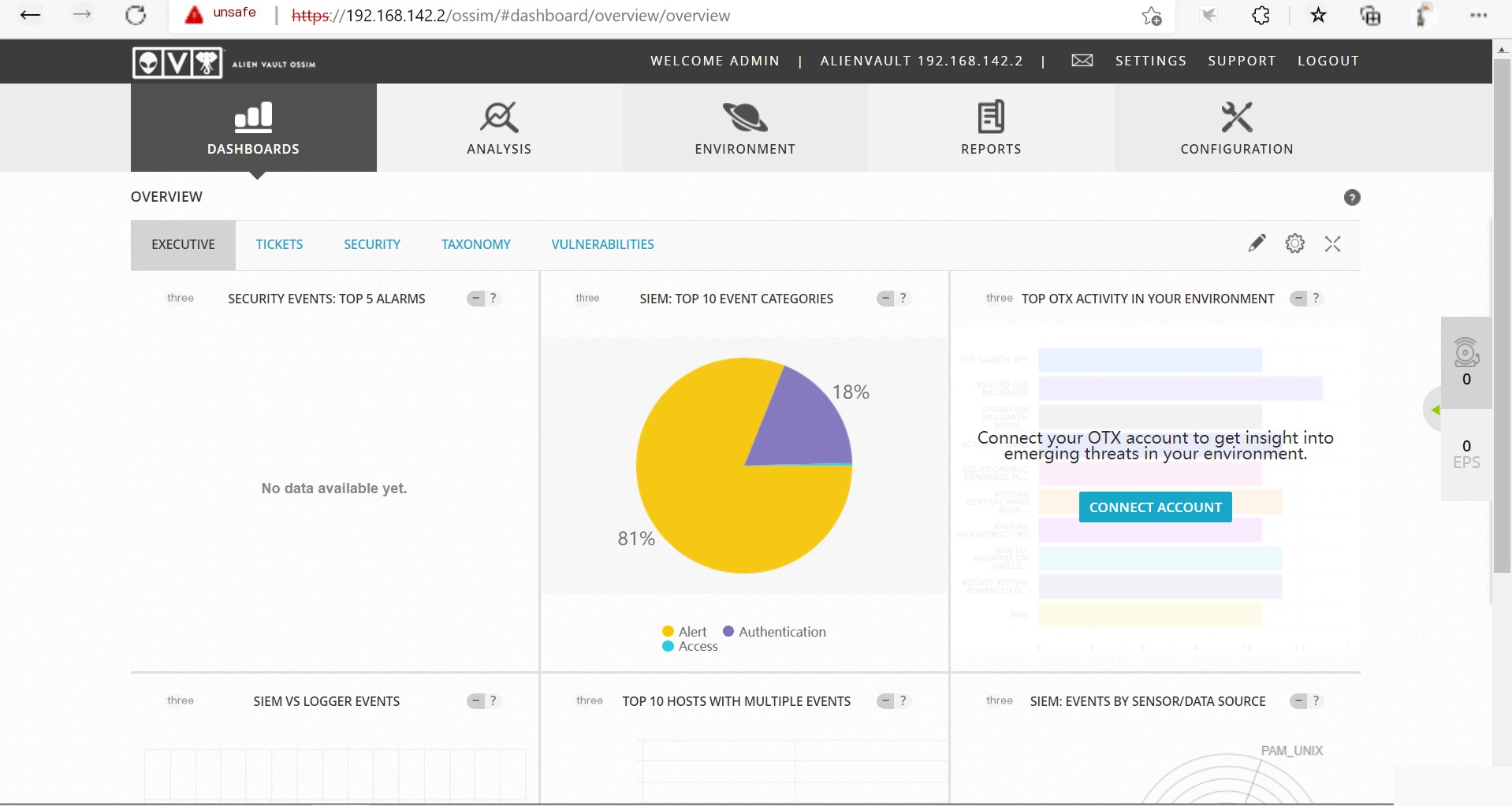

Primary Interface (OSSIM)
Introduction to main modules:
DASHBOARDS: Visualizes data in charts, making it more intuitive and easier to manage
ANALYSIS: Event analysis for filtering and viewing collected data
ENVIRONMENT: Important functions such as asset inventory, vulnerability scanning, Ntop traffic analysis, network packet capture analysis, and availability monitoring are here
REPORTS: Unified reports for generating and viewing various reports
CONFIGURATION: Web system configuration menu, basic configuration, deployment management, policy management
1. OSSIM DASHBOARDS Module
In the DASHBOARDS module, there are four menus: OVERVIEW, DEPLOYMENT STATUS, RISK MAPS, and OPEN THREAT EXCHANGE. The DASHBOARDS module displays the overall network status, allowing for timely responses to security issues. The OPEN THREAT EXCHANGE feature requires an OTX account to use.
a. OSSIM Overview
Executive: Displays information such as TOP5 Alarm, Top10 Event, Logger Event, and data sources using pie charts and bar charts
Tickets: Displays ticket system information
Security: Displays the top 5 alarms and events for security incidents, as well as recent security trend curves
Taxonomy: Categorizes infected hosts on the dashboard
Vulnerabilities: Displays asset vulnerability scanning information
Compliance: Displays asset compliance report information
b. Deployment Status: OSSIM Classification and Status Information of Asset Deployment
c. OSSIM Risk Maps
Overview: Displays the risk map of assets
Manage Maps: Map template management
d. OSSIM: Displaying OTX Trends and IP Reputation on the Map
Security events and log curves
Sensor collected events
Event categories
2. OSSIM ANALYSIS Module
In the ANALYSIS module, there are four menus: ALARMS, SECURITY EVENTS (SIEM), RAW LOGS, and TICKETS. The ANALYSIS module is mainly used to analyze network status, identify network risks, and security vulnerabilities. The TICKETS menu can be used to view the status of each machine.
3. OSSIM ENVIRONMENT Module
In the ENVIRONMENT module, there are six menus: ASSETS & GROUPS, VULNERABILITIES, NETFLOW, TRAFFIC CAPTURE, AVAILABILITY, and DETECTION.
The ASSETS & GROUPS menu monitors the machine list; the VULNERABILITIES menu is used to view scanned vulnerabilities; the NETFLOW menu is used to view network status, including TCP, UDP, ICMP, and other network resources; the TRAFFIC CAPTURE menu is used to capture data packets; the AVAILABILITY menu displays network status in a tree structure; the DETECTION menu includes intrusion detection and categorizes intrusion events.
e.OverView: Display HIDS log change trends and Agent status
Agents: Agent management
Agentless: Agentless management
Edit Rules: Edit rules
Config: Configuration rules
HIDS Control: HIDS status management
Wireless IDS: Wireless IDS management
REPORTS Module
The REPORTS module has only one menu, OVERVIEW, which includes report generation and export, and also allows sending HTML reports via email.
CONFIGURATION Module
The CONFIGURATION module mainly provides system configuration, adding system administrators, changing passwords, setting languages, and viewing the OSSM server status. It has four menus: ADMINISTRATION, DEPLOYMENT, THREAT INTELLIGENCE, and OPEN THREAT EXCHANGE.
Disadvantages
This open-source tool basically meets the requirements, but it does not have large-scale log collection and storage capabilities. It is more of a SEM, focusing more on real-time security monitoring, real-time risk assessment, alerting, and handling. According to the official website, the open-source version does not provide log management functionality, and the specific reasons for the lack of log management functionality were not found.
[External image link failed, the source site may have anti-leech mechanism, it is recommended to save the image and upload it directly (img-E3wSz8Y4-1661912151768)(C:\Users\mokapeng\AppData\Roaming\Typora\typora-user-images\image-20220827102236453.png)]
II. Security Onion
Official website: https://securityonionsolutions.com/software/
Security Onion is a Linux distribution designed for intrusion detection and NSM (Network Security Monitoring). It integrates log analysis, traffic analysis, and security alerts.

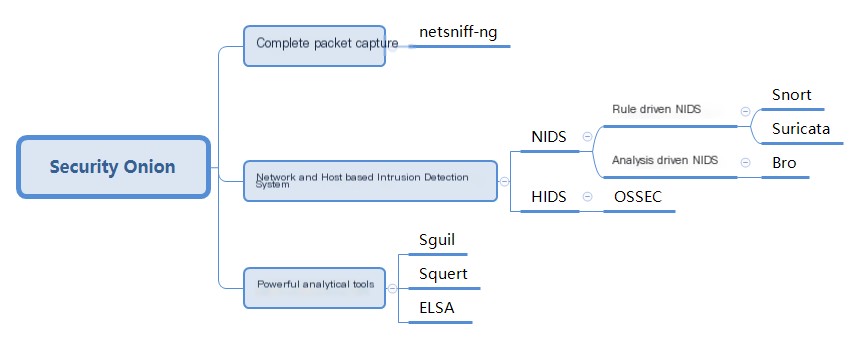

Core Components
The components in Security Onion include: snort (intrusion detection engine), suricata (intrusion detection engine), bro (intrusion detection analysis system), sguil (intrusion detection analysis system), squert (frontend display), snorby (frontend display), wireshark (packet capture), xplico (traffic audit). They are roughly categorized as follows:
Full packet capture;
Network and host-based intrusion detection systems (HIDS and NIDS);
Powerful analysis tools
Feature Demonstration

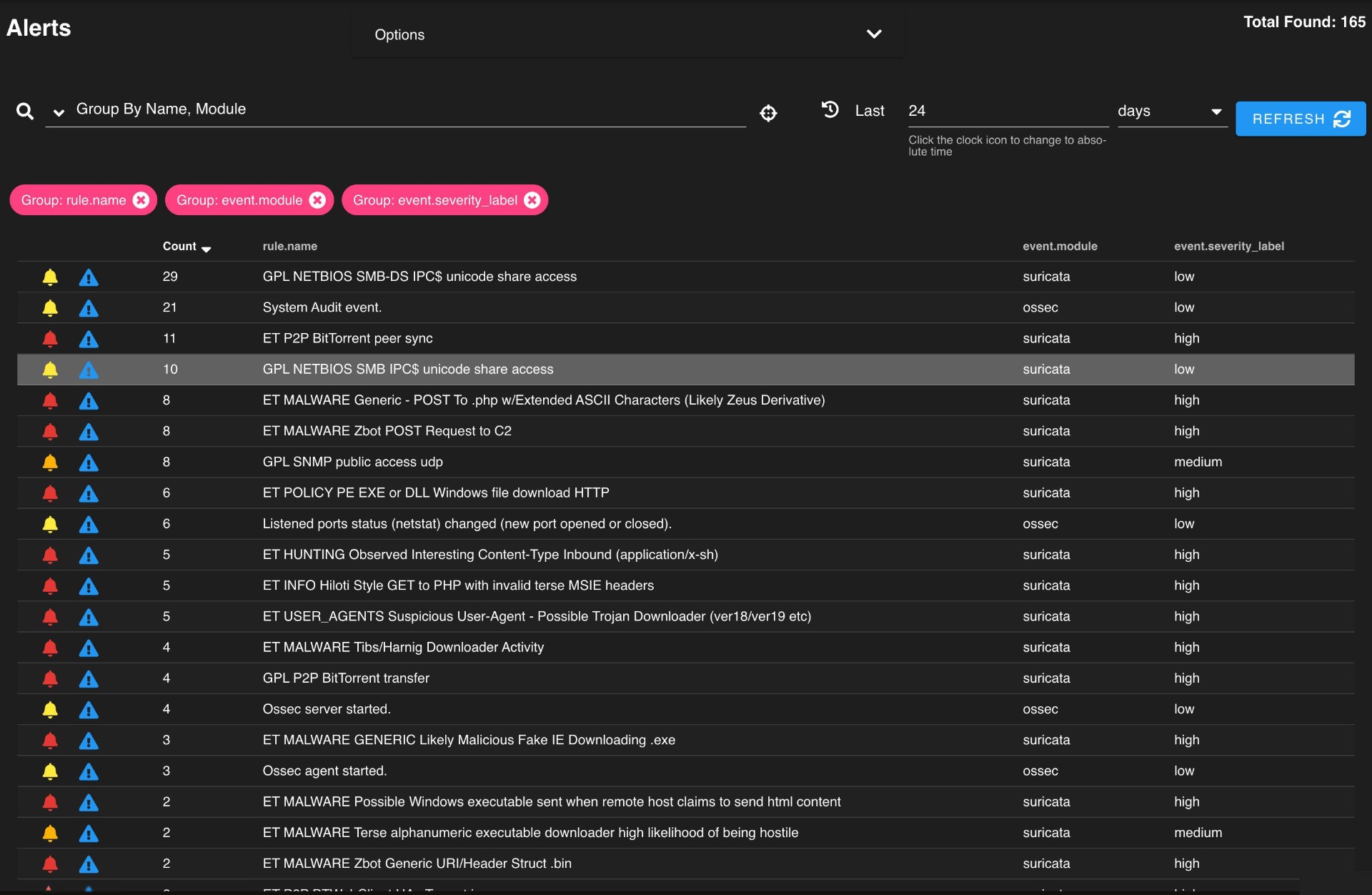

Alerts

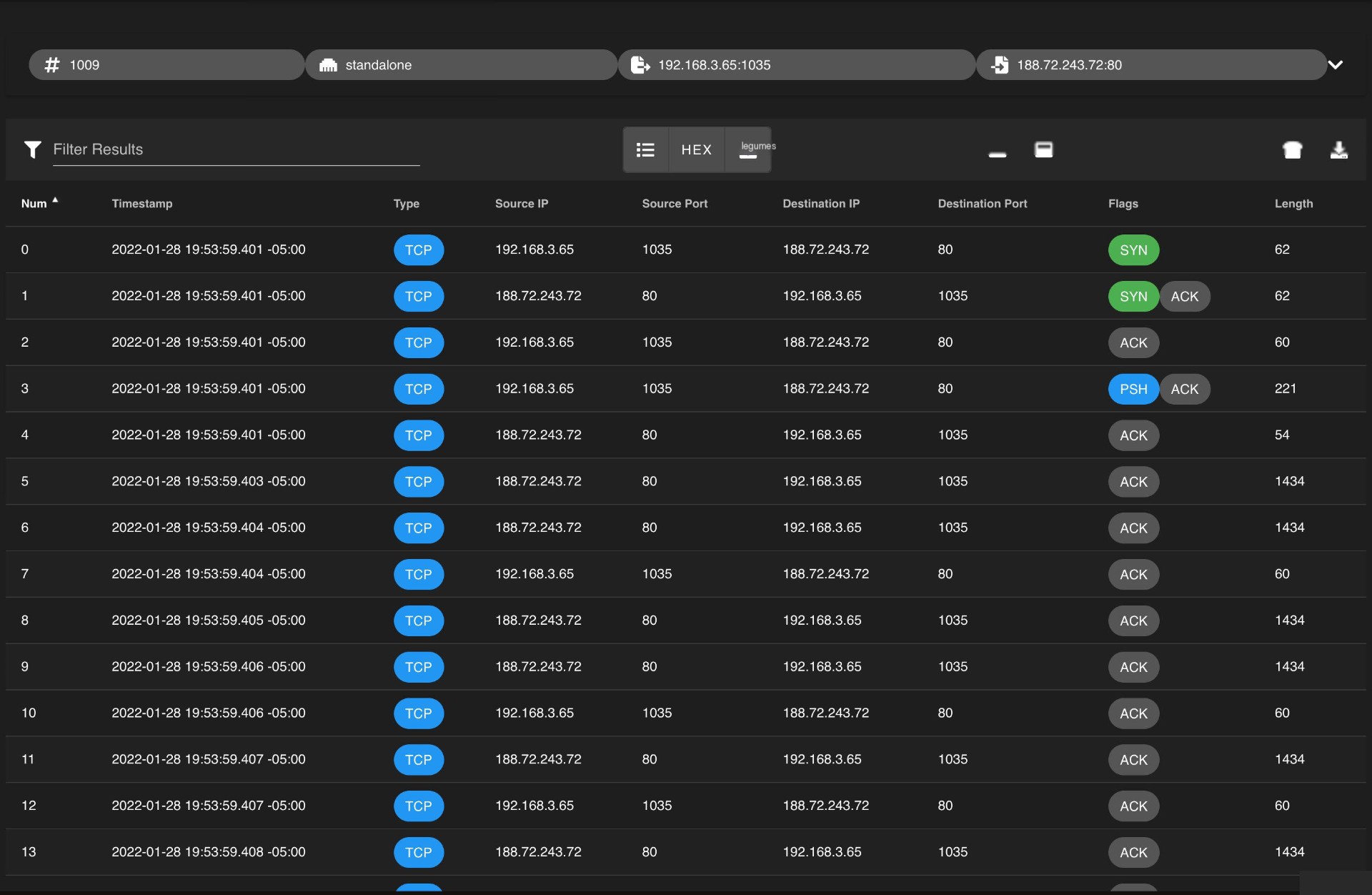

Capture

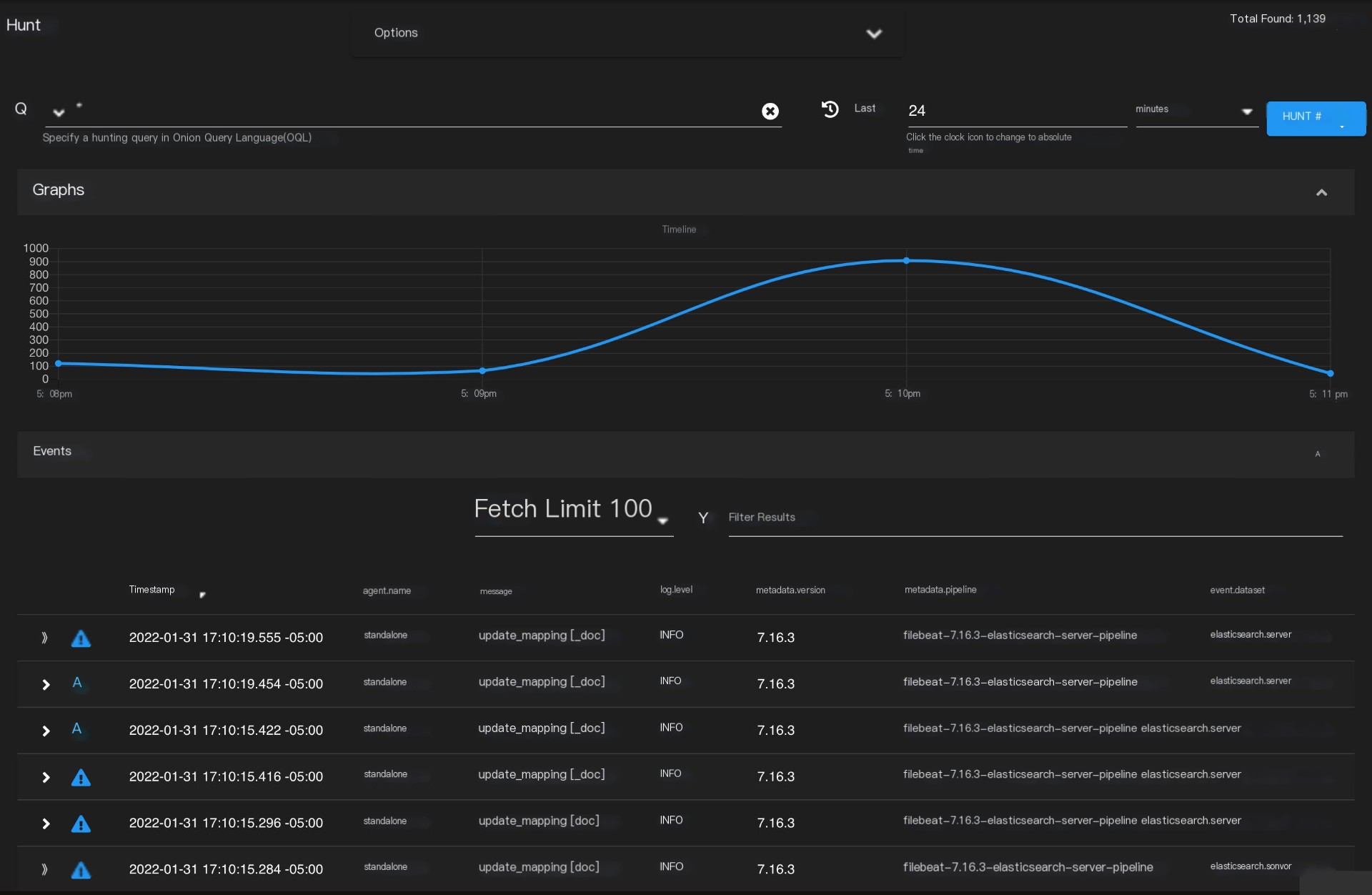

Traffic Analysis

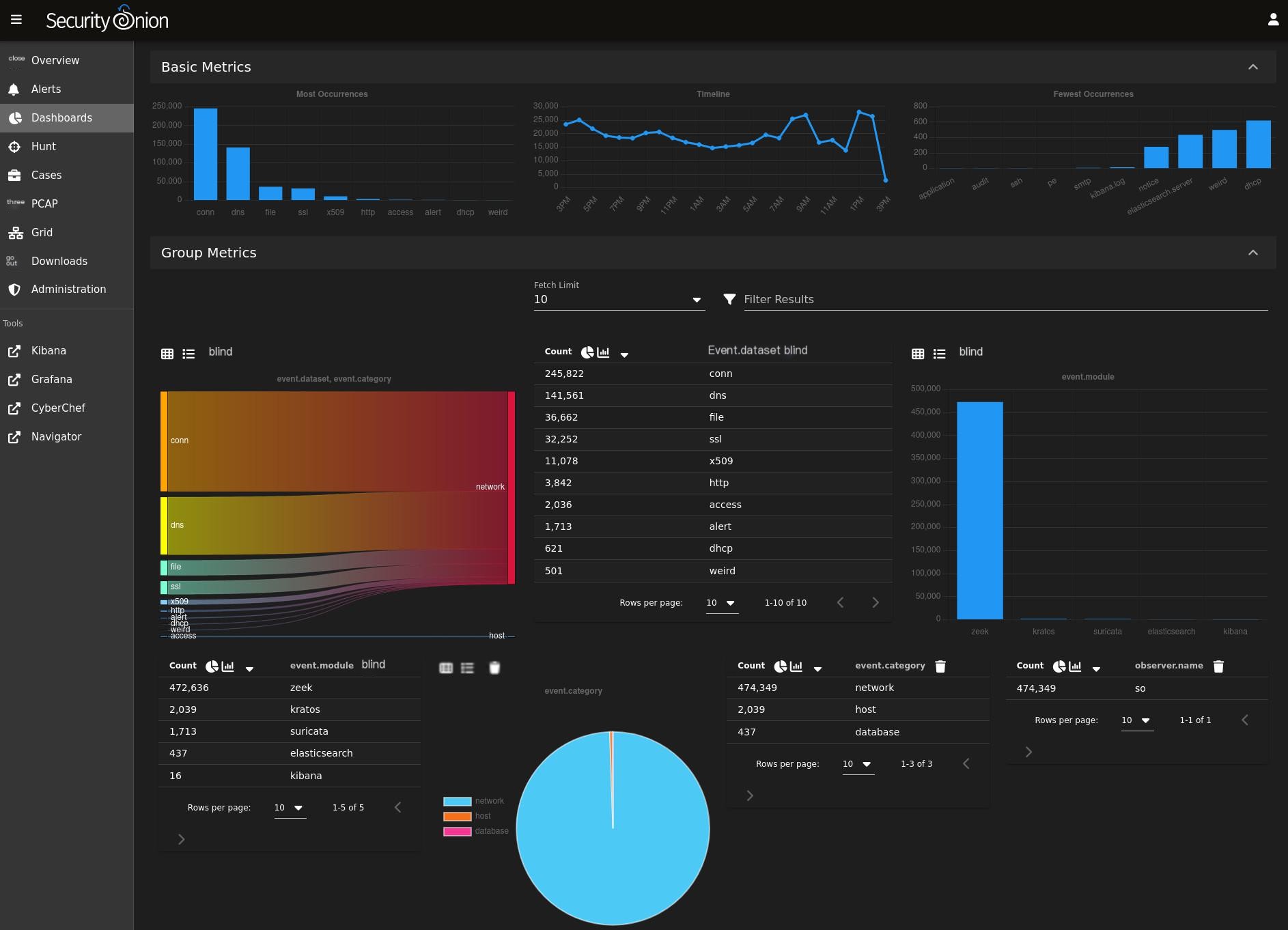

Dashboard
Analysis Features

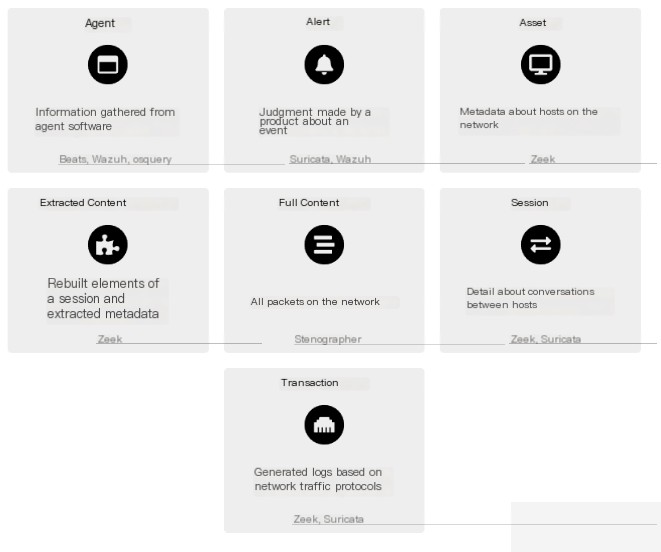

Usable Data Types
III. WatchAD Internal Network Security Situational Awareness System
360’s open-source project, free for enterprises to use: https://github.com/Qianlitp/WatchAD/blob/master/README_zh-cn.md
It is an internal network situational awareness project, currently supporting the following specific detection functions:
Information Detection
Use SAMR to query sensitive user groups
Use SAMR to query sensitive users
Honeypot account activity
PsLoggedOn information collection
Credential Theft
Kerberoasting (traffic)
AS-REP Roasting
Remote dump of domain controller passwords
Lateral Movement
Account brute force
Explicit credential remote login
Remote code execution on target domain controller
Unknown file share names
Kerberos ticket encryption downgrade (traffic)
Abnormal Kerberos ticket requests (traffic)
Privilege Escalation
ACL modification
MS17-010 attack detection
New group policy monitoring
NTLM relay detection
Resource-based constrained delegation privilege grant detection
Attack on printer service SpoolSample
Unknown privilege escalation
MS14-068 attack detection (traffic)
Kerberos constrained delegation abuse (traffic)
Persistence
AdminSDHolder object modification
DCShadow attack detection
DSRM password reset
Group policy delegation privilege grant detection
Kerberos constrained delegation privilege grant detection
Sensitive user group modification
New system service on domain controller
New scheduled task on domain controller
SIDHistory attribute modification
Golden Ticket – active detection
Golden Ticket – passive detection (traffic)
Golden Ticket (traffic)
Defense Evasion
Event log clearing
Event log service shutdown

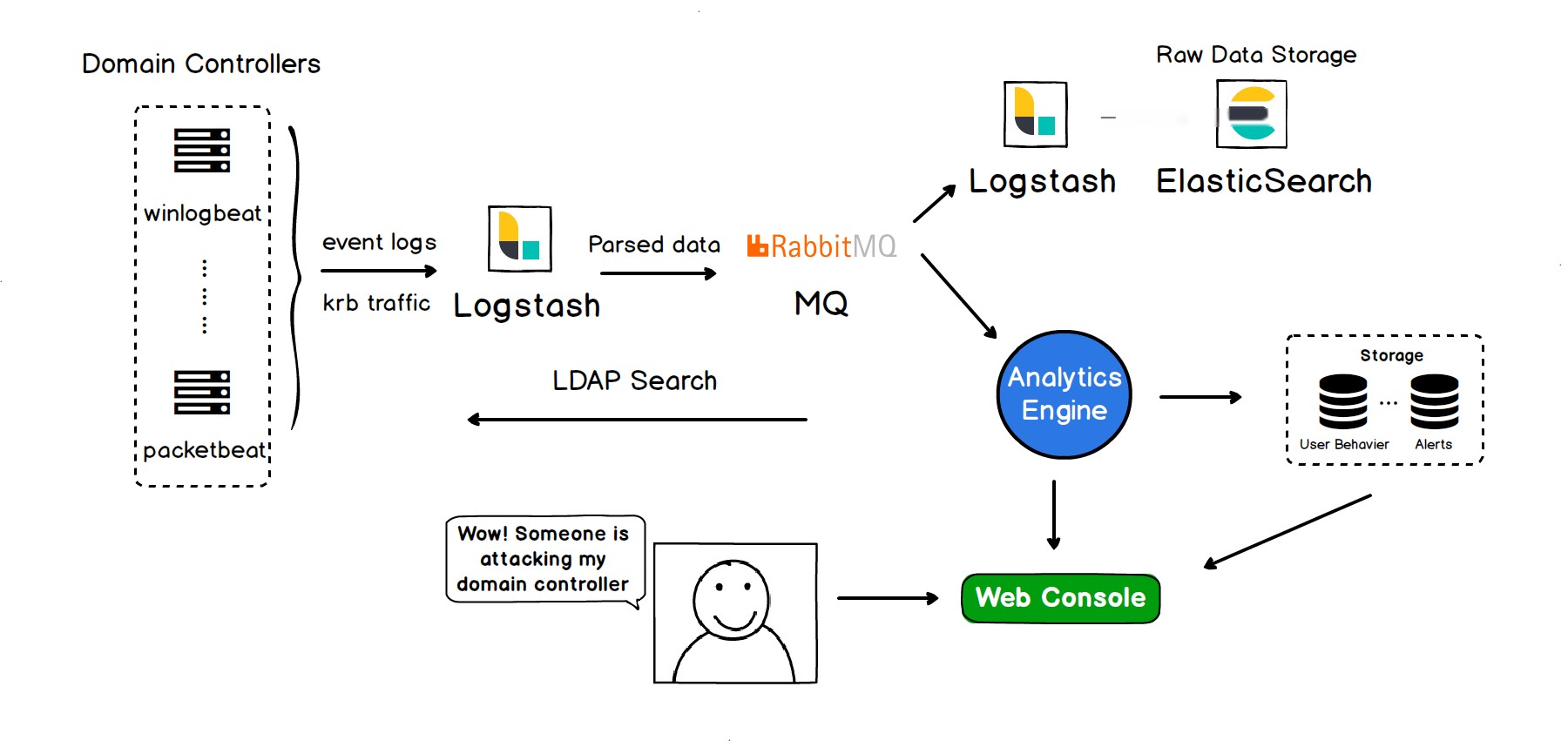

Project Architecture Diagram

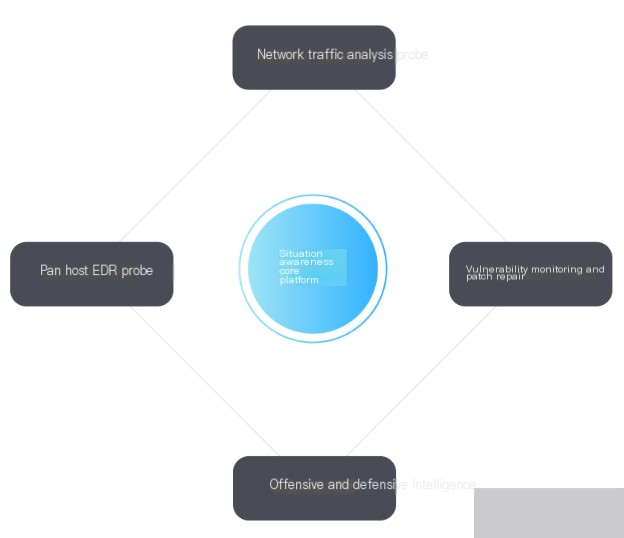

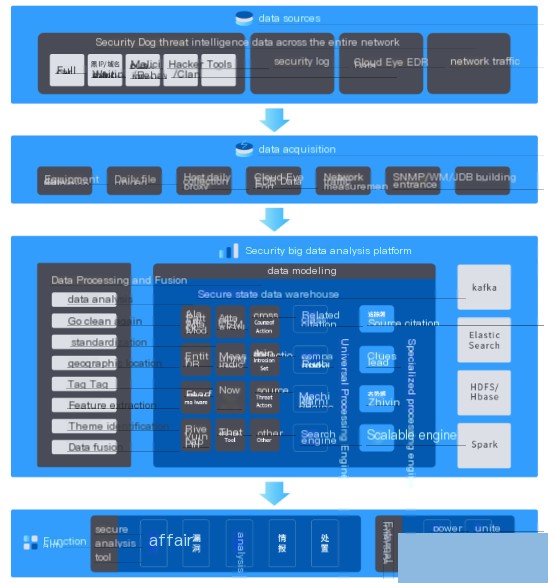

IV. SafeDog: Free to use https://www.safedog.cn/index/bigDataSolution.html
Limitations: Can only process 5000MB of data per day, with only 7GB of storage space per month
OSSEC+
Official website: https://www.ossec.net/, OSSEC is an open-source intrusion detection system that can perform LOG analysis, integrity checking, Windows registry monitoring, rootkit detection, real-time alerting, and dynamic response. However, this system is a host-based detection platform and does not have traffic analysis or detection modules.
Wazuh
A host-based intrusion detection system, it does not include traffic-related functions.
Architecture:
