Mastering Unix/Linux Security: Advanced Iptables Firewall Techniques

Practical Use of Iptables

Overview

Netfilter/Iptables (hereinafter referred to as Iptables) is an excellent and open-source, completely free firewall tool based on packet filtering that comes with Unix/Linux. It is incredibly powerful and highly flexible, allowing for very detailed control over the packets flowing into and out of the server. Remarkably, it can perform well under very low hardware configurations (I once deployed a gateway firewall on a Celeron 500HZ CPU with 64M memory, efficiently providing internet service to nearly 400 people without compromising in comparison to enterprise-grade professional router firewalls). Iptables is a service integrated into the Linux 2.4 and 2.6 kernels. Its functionality and security are far superior to its predecessors like Ipfwadn and ipchains. Iptables mainly operates at layers two, three, and four of the OSI seven-layer model. If the kernel is recompiled, Iptables can also support seven-layer control (squid proxy + iptables).

Terminology:

• Container: Relationship of inclusion or belonging
• Netfilter/Iptables is a container of tables (four tables)
• Four Tables
  • filter: Filters packets
  • nat: Used for Network Address Translation (IP, port)
  • mangle: Modifies packet service types, TTL, and can configure routing for QOS
  • raw Table: Decides if a packet is processed by the state tracking mechanism
  • Iptables Tables and Chains Workflow Chart


    Iptables Filtering Diagram
    Iptables functions using packet filtering mechanisms. It analyzes the header data of incoming data packets based on predefined rules to decide whether the packet can enter the host.




    – The firewall applies filters layer by layer, actually following the configured rules sequentially from top to bottom, front to back.
    – If a rule is matched, indicating whether to block or allow, the packet will not be matched against further new rules.
    – If none of the rules clearly indicates to block or allow, meaning no rule matches, the system checks downward until the default rule is matched to give a clear block or allow.
    – The firewall’s default rule executes only after all rules in the chain are processed.
    – The execution order of Iptables firewall rules is by default from front to back (top to bottom), executed sequentially. Upon encountering a matched rule, it stops further checks; only unmatched ones will continue to be checked.




    Note: If a DROP rule is placed at the top, the rules below will not match and execute. Hence, use the -I parameter to insert new rules at the top.




    Iptables Installation
    – Check if iptables is installed: systemctl status iptables
    – Install iptables: yum install iptables* -y
    – Start iptables: systemctl start iptables
    – Disable the firewall: systemctl disable –now firewalld
    – Disable selinux: vim /etc/selinux/config




    Iptables Command Explanation
    Format: `iptables [-t table] [parameter chain] [parameter protocol] [parameter port] [parameter action]`




    Parameter Descriptions:
    – -t: Specifies the table to operate on
    – -L: Lists the current rules
    – -v: Displays packet and packet size
    – -n: Does not reverse lookup addresses
    – -A: Appends a rule to the chain
    – -I: Inserts a rule at the top
    – -F: Flushes the rules
    – -Z: Clears counters (packet number, packet size)
    – -D: Deletes a rule from the chain
    – -R: Modifies a rule
    – -S: Lists all rules
    – -N: Creates a custom chain
    – -X: Deletes a custom chain
    – -P: Specifies the default policy for the chain




    Protocol List for Iptables:
    – TCP: Matches TCP protocol, HTTP belongs to TCP
    – UDP: Matches UDP protocol
    – ICMP: Matches ICMP protocol, similar to ping
    – ALL: Matches all protocols




    Port Parameter Description:
    – –sport: Source port, port sending the request
    – –dport: Destination port, port being accessed




    Actions Table:
    – ACCEPT: Allows packets, and after processing this action, no further rules are compared; it directly moves to the next rule chain
    – REJECT: Blocks the packet and sends a packet notification to the other side
    – DROP: Discards the packet without processing, and after this action, no further rules are compared; it interrupts the filter program directly
    – REDIRECT: Redirects the packet to another port, and after processing this action, other rules are still compared




    Parameters: -i, -o, -m, -j, -s, -d
    – -i: Incoming network interface
    – -o: Outgoing network interface
    – -m: Specifies the module
    – -j: Executes the action (from the table above)
    – -p: Specifies the protocol
    – -s: Source address, address sending the request
    – -d: Destination address, address being accessed




    Common Iptables Commands
    – iptables -h: View help
    – iptables -L -v: List all rules (in filter table)
    – iptables -L -n: List all rules (in filter table, default, -n is non-reverse lookup)
    – iptables -L -n -t nat: List all rules (in nat table)
    – iptables -F: Clear all rules (in filter table)
    – iptables -F -t nat: Clear all rules (in nat table)
    – service iptables save: Save configuration (configuration must be restarted after saving)
    – systemctl restart iptables: Restart




    Common Iptables Syntax
    – -A: Adds to the end of the rules
    – -D: Deletes a record
    – -I: Adds to the first rule
    – -p: (proto) Specifies communication protocol, common protocols: tcp, udp, icmp, all
    – -j: (jump) Specifies the target to jump to, common targets: ACCEPT (accept packets), DROP (discard packets), REJECT (redirect)—generally, redirects are not used due to security risks




    Common Use Cases
    Case 1: Only Allow Access to Port 22, Blocking All Other Ports
    bash
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -j DROP
    [root@m01 ~]# iptables -L -v




    Review the rules (result too long, not displayed here).




    Case 2: Allow Access Only to Ports 22, 80, 443, Block All Others
    bash
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 80 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 443 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -j DROP




    If you try to access Baidu, you’ll get a timeout because the required ports are not specified.
    bash
    [root@m01 ~]# curl www.baidu.com
    curl: (7) Failed to connect to www.baidu.com:80; Connection timed out




    Case 3: Allow Only Ports 22, 80, 443, Local Machine Can Access Baidu
    bash
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 80 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 443 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -j DROP




    Case 4: Allow Connection from Port 22 to IP 192.168.15.81
    bash
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -d 192.168.15.81 –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -j DROP




    Test with a new window or VM.




    Case 5: Allow IP 192.168.15.71 to Connect via Port 22 to 192.168.15.81 Only
    bash
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -s 192.168.15.71 -d 192.168.15.81 –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP -j DROP




    Test connection from 71 to 81; 81 is disconnected.




    Case 6: Make 192.168.15.71 Invisible
    bash
    [root@prometheus ~]# iptables -t filter -A INPUT -p TCP -d 192.168.15.71 -j DROP




    The address within the VM is not visible externally.




    Case 7: Block All Requests via eth0 Interface
    bash
    [root@prometheus ~]# iptables -t filter -A INPUT -p TCP -i eth0 -j DROP




    Case 8: Block Baidu Access via eth1 Interface
    bash
    [root@prometheus ~]# iptables -t filter -I OUTPUT -p TCP -o eth1 -j DROP




    Case 9: Redirect Port 8080 to Port 80
    bash
    [root@m01 ~]# iptables -t nat -A PREROUTING -p TCP –dport 8080 -j REDIRECT –to-port 80




    Case 10: Allow Only Windows to SSH into 192.168.15.81
    Find the Windows IP address first:
    bash
    # From Windows:
    ipconfig
    # Find IPV4 address under WMnet8




    Then configure:
    bash
    [root@m01 ~]# iptables -t filter -I INPUT -p TCP -s 192.168.15.1 -d 192.168.15.81 –dport 22 -j ACCEPT
    [root@m01 ~]# iptables -t filter -A INPUT -p TCP –dport 22 -j DROP




    IP Filtering and Port Management
    – Block all data from IP 192.168.1.3
    bash
    iptables -A INPUT -s 192.168.1.3 -j DROP




    – Open Port 80
    bash
    iptables -A INPUT -p tcp –dport 80 -j ACCEPT




    – Open Port Range 22 to 80
    bash
    iptables -I INPUT -p tcp –dport 22:80 -j ACCEPT




    – Block Outbound Traffic on Port 80
    bash
    iptables -I OUTPUT -p tcp –dport 80 -j DROP




    Modules and Advanced Configurations
    – **Multiport Module**: Match Multiple Ports and Port Ranges
    bash
    iptables -t filter -A INPUT -p TCP -m multiport –dports 22,80,443,30000:50000 -j ACCEPT
    iptables -t filter -A INPUT -p TCP -j DROP




    – **IP Range Module**: Specify a Source or Destination IP Range
    bash
    iptables -t filter -A INPUT -p TCP -m iprange –src-range 192.168.15.1-192.168.15.10 -j ACCEPT
    iptables -t filter -A INPUT -p TCP -j DROP




    – **String Module**: Block Traffic Containing Specific Strings
    bash
    echo “Helloworld” > index.html
    echo “Hello” > demo.html
    iptables -t filter -A INPUT -p TCP -m string –string “Helloworld” –algo kmp -j DROP




    Examples of Other Advanced Use-Cases
    – **Time Module**: Restrict Access Based on Time
    bash
    iptables -t filter -A INPUT -p TCP -m time –timestart 14:00 –timestop 15:00 -j DROP




    – **ICMP Module**: Refine Ping Restrictions
    bash
    iptables -t filter -A INPUT -p ICMP -m icmp –icmp-type “echo-request” -j DROP




    – **Connlimit Module**: Limit Concurrent Connections
    bash

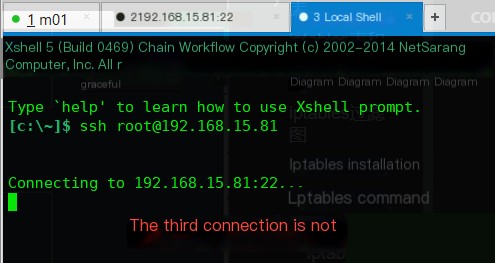

    iptables -t filter -A INPUT -p TCP –dport 22 -m connlimit –connlimit-above 2 -j DROP





    Limit Module




    Limits packet rate; per second, minute, hour, day.





    • Parameters



      • –limit rate[/second|/minute|/hour|/day]: Number of packets


      • –limit-burst number: Packet count (default: 5)









     # Example: Limit rate to around 500k/s, approximately 333 packets per second
    # Create a test file
    [root@m01 ~]# dd if=/dev/zero of=a.txt bs=100M count=10
    10+0 records in
    10+0 records out
    1048576000 bytes (1.0 GB) copied, 7.64477 s, 137 MB/s
    # Limit rate (control is inaccurate!)
    [root@m01 ~]# iptables -t filter -A OUTPUT -p TCP -m limit --limit 333/s -j ACCEPT
    [root@m01 ~]# iptables -t filter -A OUTPUT -p TCP -j DROP

    # Transfer
    [root@m01 ~]# scp a.txt [email protected]:/root









    The transfer rate is inaccurate, gradually decreasing until it stabilizes!




    Additional Knowledge:




    Check CentOS Version




     cat /etc/redhat-release




    Command to check local port usage:




    Command: netstat -nutlp




     [root@m01 ~]# netstat -nutlp
    Active Internet connections (only servers)
    Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
    tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1591/nginx: master
    tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      1304/sshd
    tcp6       0      0 :::80                   :::*                    LISTEN      1591/nginx: master
    tcp6       0      0 :::22                   :::*                    LISTEN      1304/sshd




    iptables Script Setting




     #!/bin/sh
    iptables -P INPUT ACCEPT
    iptables -F
    iptables -X
    iptables -Z
    iptables -A INPUT -i lo -j ACCEPT
    iptables -A INPUT -p tcp --dport 22 -j ACCEPT
    iptables -A INPUT -p tcp --dport 21 -j ACCEPT
    iptables -A INPUT -p tcp --dport 80 -j ACCEPT
    iptables -A INPUT -p tcp --dport 443 -j ACCEPT
    iptables -A INPUT -p icmp --icmp-type 8 -j ACCEPT
    iptables -A INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT
    iptables -P INPUT DROP
    iptables -P OUTPUT ACCEPT
    iptables -P FORWARD DROP
    service iptables save
    systemctl restart iptables.service




    Additional Case Study




    Enterprise Case




    If the log file /var/log/messages reports: kernel: nf_conntrack: table full, dropping packet, the solution is as follows:




     # This result will cause slow business network access
    net.nf_conntrack_max = 250000000
    net.netfilter.nf_conntrack_max = 250000000
    # Shorten response time
    net.netfilter.nf_conntrack_timeout_established = 170
    net.netfilter.nf_conntrack_timeout_wait = 120
    net.netfilter.nf_conntrack_timeout_close_wait = 60
    net.netfilter.nf_conntrack_timeout_fin_wait = 100




    Common Pitfalls




    Saving the iptables rules (service iptables save) might fail sometimes after setting them Install iptables during the first step using yum install -y iptables to ensure all packages are complete, as the default system packages may not be sufficient Be cautious not to lock yourself out when filtering ports; you can clear all rules from a virtual machine to resolve
