Installation Environment
- Operating System: Windows 7
- Required Software:
- Virtual Machine: VMware
- Network Packet Capture Driver: WinPcap 4.1.3 ( WinPcap_4_1_3.exe)
- Snort for Windows Installer: Snort 2.8.6 for Win32 ( Snort_2_8_6_Installer.exe)
- Official Certified Snort Rule Set: snortrules-snapshot-2900.tar.gz
- Database Component and Analysis Platform: AppServ 8.6.0 ( appserv-win32-8.6.0.exe)
- Web Frontend: Basic Analysis and Security Engine 1.4.5 ( base-1.4.5.tar.gz)
- To download the installation packages used this time, please comment “666”, and I will privately message you the shared link. Feel free to exchange technical knowledge.
Since we are setting up a test environment, all components will be installed on a single machine as part of the VMware installation.
Preparation Before Installation
VMware Installation Guide: VMware Installation (Babysitter-Level Guide, with Installation Package) _vmware Virtual Machine – CSDN Blog
VMware Install Windows 7 Guide: VMWare Workstation Installation Windows 7 Image (Babysitter-Level Guide) _vmware Install Win7 ISO Image File – CSDN Blog WinPcap Installation: Click next and use default settings.
Snort Installation and Configuration: Use Default Settings
Click confirm and it will prompt a successful installation.

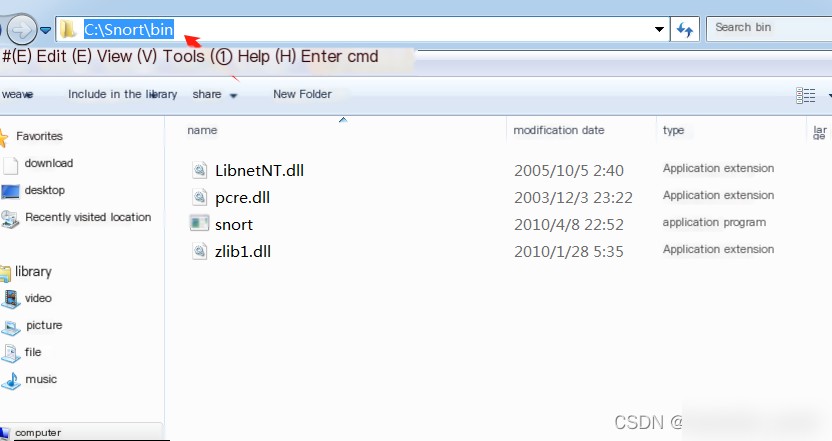

Testing, go to the path in the first image and enter cmd.
In the command line enter snort -W, and if the result is as shown, the installation is successful.
Extract snortrules-snapshot-2900.tar and copy the three files to the snort path.
Modify the snort.conf configuration file
Open the configuration file snort.conf with an editor, it’s easy to find with the line numbers, screenshots are of the modified version.
var RULE_PATH c:\snort\rules var SO_RULE_PATH c:\snort\so_rules var PREPROC_RULE_PATH c:\snort\preproc_rules
# path to dynamic preprocessor libraries dynamicpreprocessor directory c:\snort\lib\snort_dynamicpreprocessor
# path to base preprocessor engine dynamicengine c:\snort\lib\snort_dynamicengine\sf_engine.dll

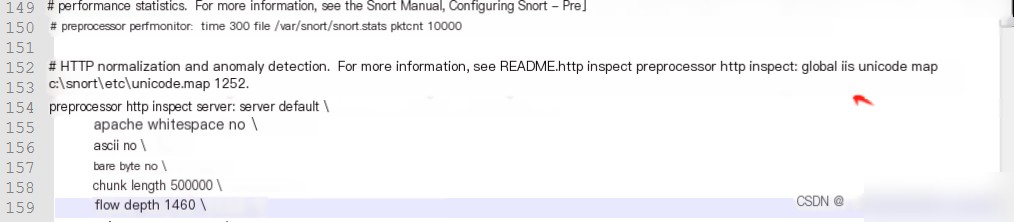

preprocessor http_inspect: global iis_unicode_map c:\snort\etc\unicode.map 1252
output database: alert, mysql, user=snort password=snort dbname=snortdb host=localhost

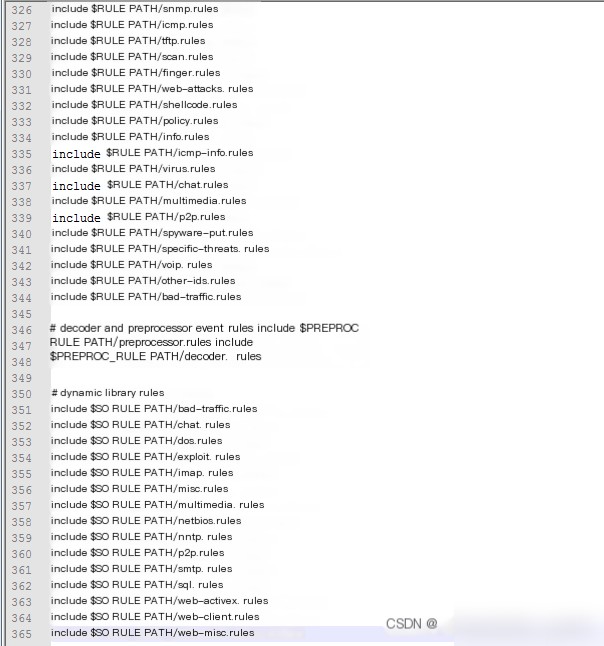

include $RULE_PATH/snmp.rules include $RULE_PATH/icmp.rules include $RULE_PATH/tftp.rules include $RULE_PATH/scan.rules include $RULE_PATH/finger.rules include $RULE_PATH/web-attacks.rules include $RULE_PATH/shellcode.rules include $RULE_PATH/policy.rules include $RULE_PATH/info.rules include $RULE_PATH/icmp-info.rules include $RULE_PATH/virus.rules include $RULE_PATH/chat.rules include $RULE_PATH/multimedia.rules include $RULE_PATH/p2p.rules include $RULE_PATH/spyware-put.rules include $RULE_PATH/specific-threats.rules include $RULE_PATH/voip.rules include $RULE_PATH/other-ids.rules include $RULE_PATH/bad-traffic.rules
# decoder and preprocessor event rules include $PREPROC_RULE_PATH/preprocessor.rules include $PREPROC_RULE_PATH/decoder.rules
# dynamic library rules include $SO_RULE_PATH/bad-traffic.rules include $SO_RULE_PATH/chat.rules include $SO_RULE_PATH/dos.rules include $SO_RULE_PATH/exploit.rules include $SO_RULE_PATH/imap.rules include $SO_RULE_PATH/misc.rules include $SO_RULE_PATH/multimedia.rules include $SO_RULE_PATH/netbios.rules include $SO_RULE_PATH/nntp.rules include $SO_RULE_PATH/p2p.rules include $SO_RULE_PATH/smtp.rules include $SO_RULE_PATH/sql.rules include $SO_RULE_PATH/web-activex.rules include $SO_RULE_PATH/web-client.rules include $SO_RULE_PATH/web-misc.rules
AppServ Installation and Configuration
Keep Clicking Next

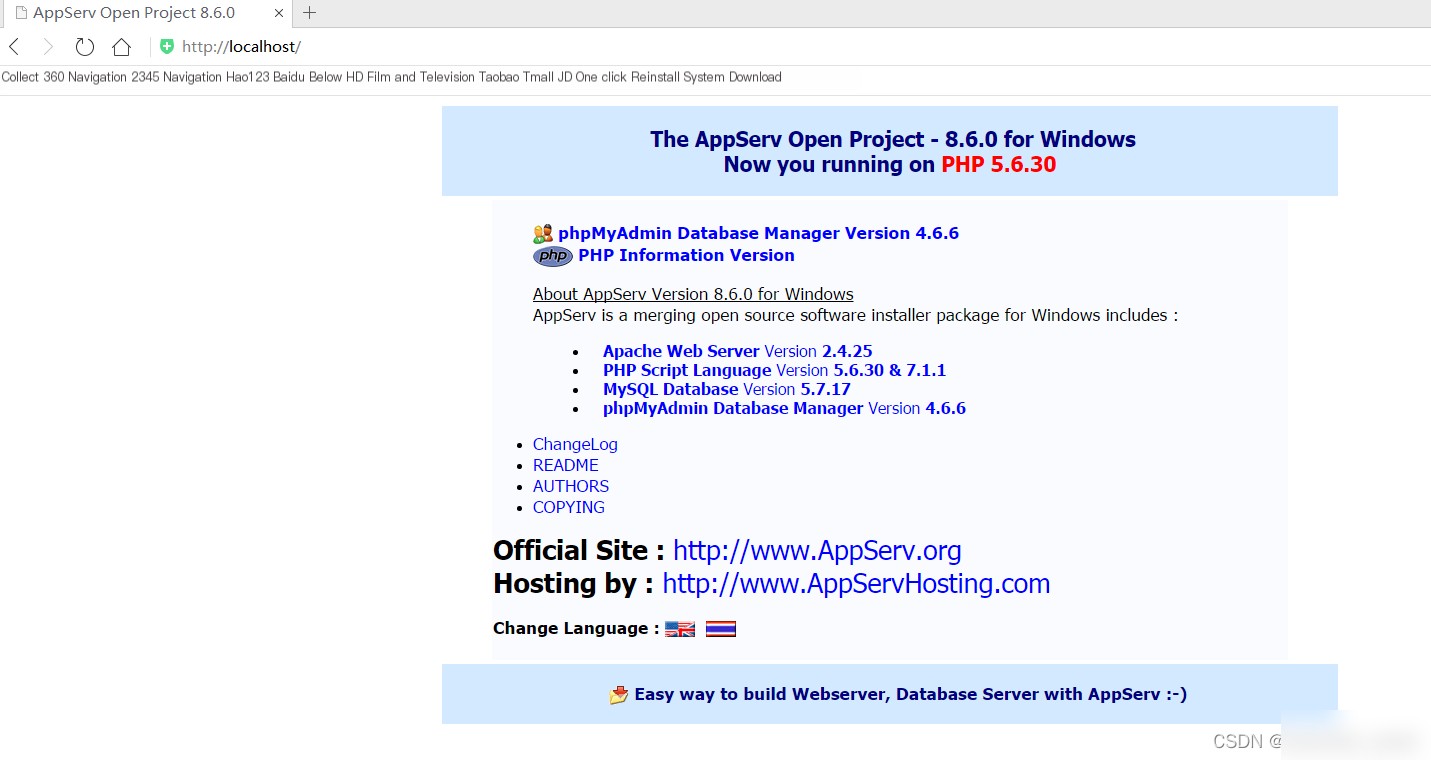

When you enter localhost and see the following interface, you have successfully installed

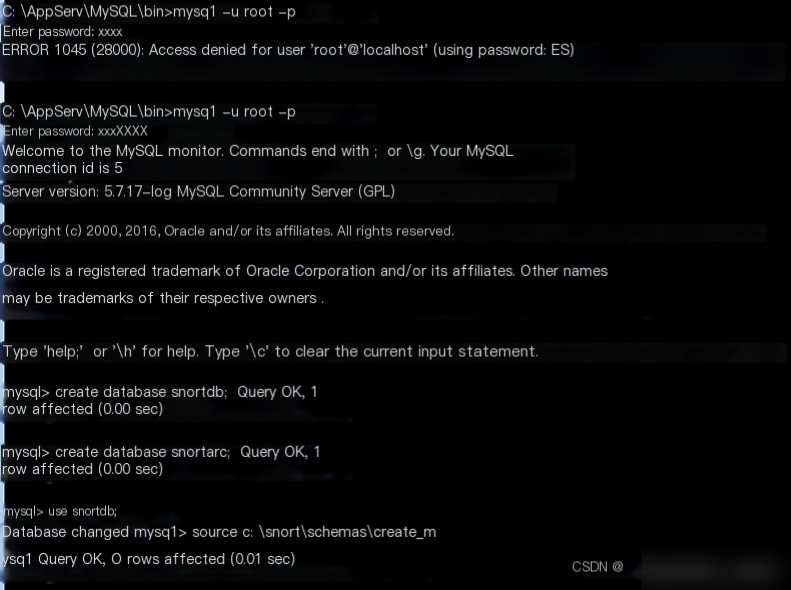

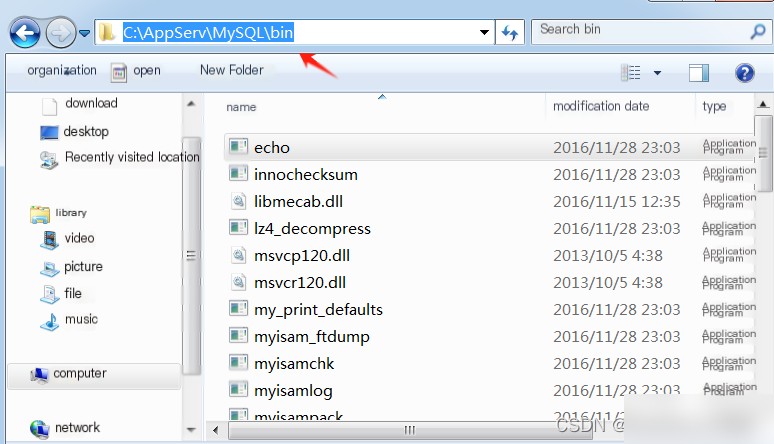

Enter cmd and press Enter, then type MySQL -u root -p
Enter the password 12345678
create database snortdb;
create database snortarc;
use snortdb;
source c:\snort\schemas\create_mysql
use snortarc;
source c:\snort\schemas\create_mysql

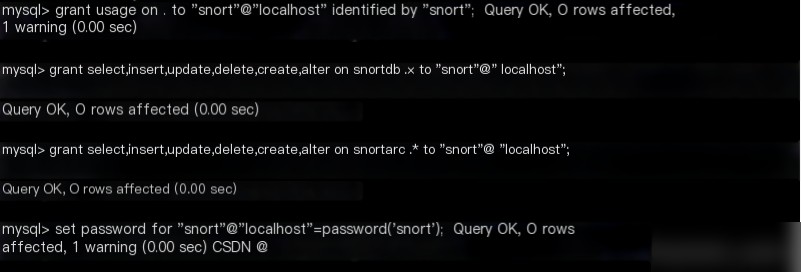

grant usage on *.* to “snort”@”localhost” identified by “snort”;
grant select, insert, update, delete, create, alter on snortdb.* to “snort”@”localhost”;
grant select, insert, update, delete, create, alter on snortarc.* to “snort”@”localhost”;
set password for “snort”@”localhost”=password(‘snort’);

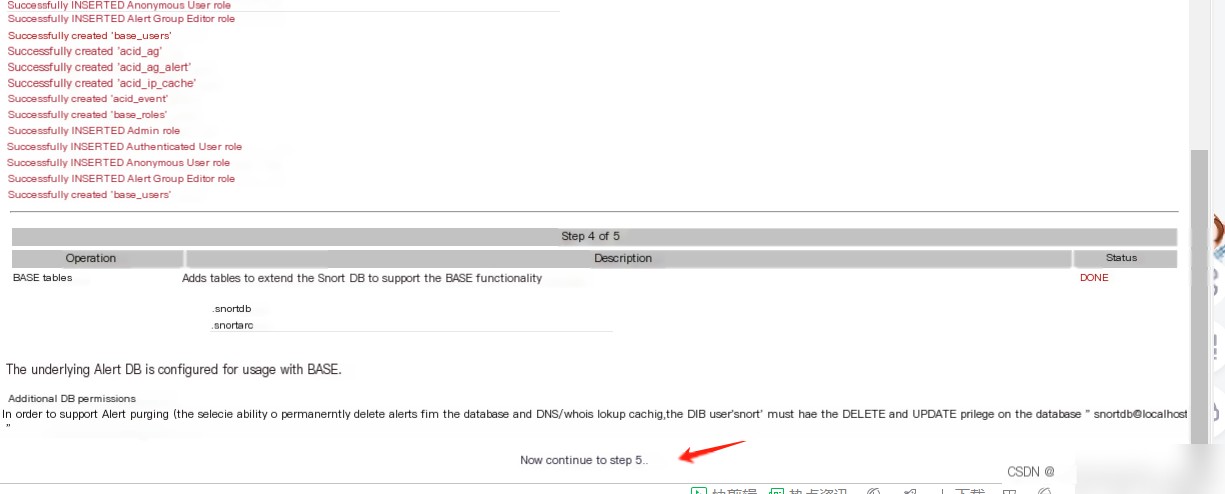

Configure BASE
Extract adodb465 and base1.45 to the C drive

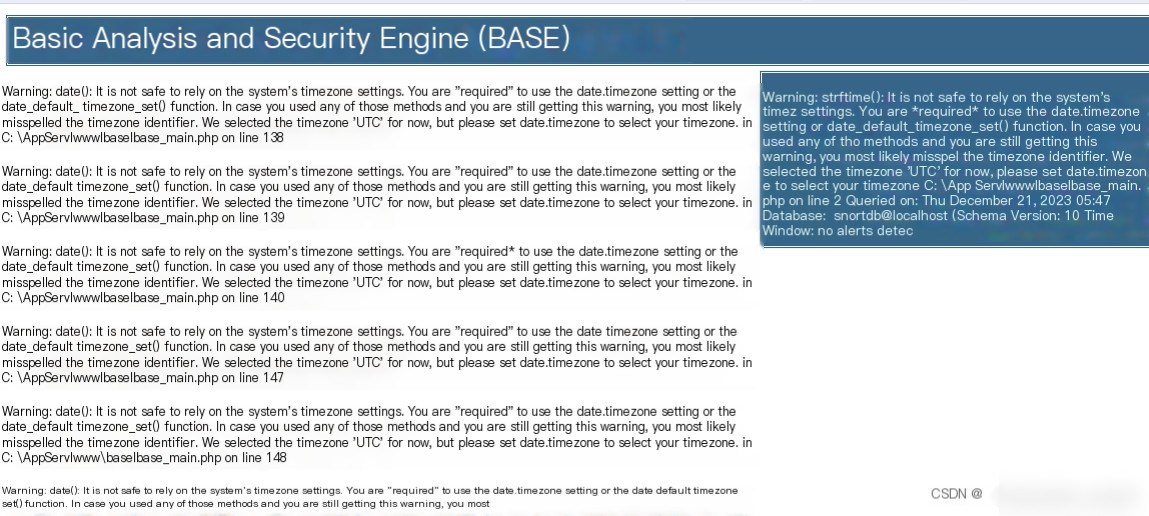

Ignore these warnings
Ignore these warnings

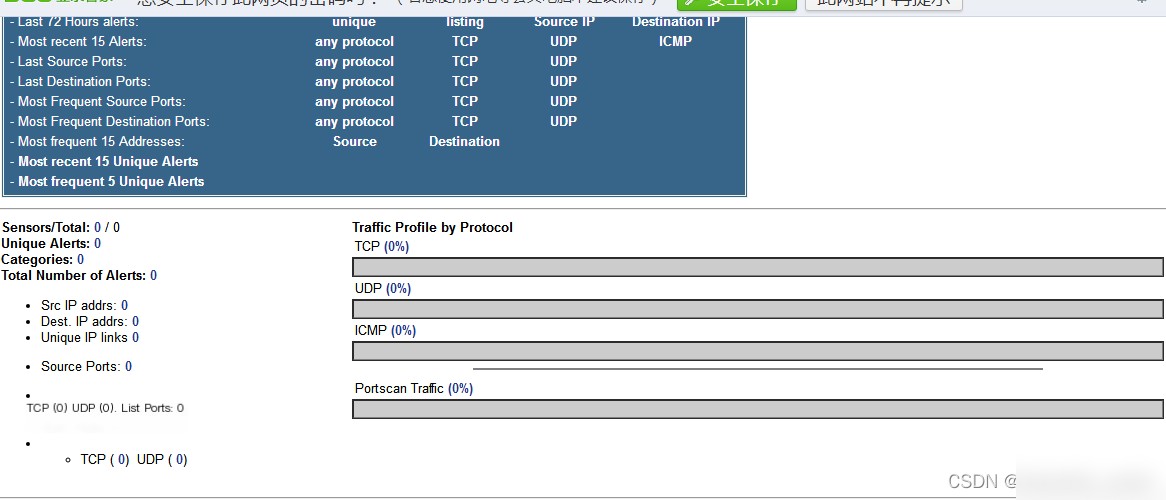

Ignore the warnings and look at the bottom line
Type: c:\snort\bin\snort -i1 -dev -c c:\snort\etc\snort.conf -l c:\snort\log
The following error occurs

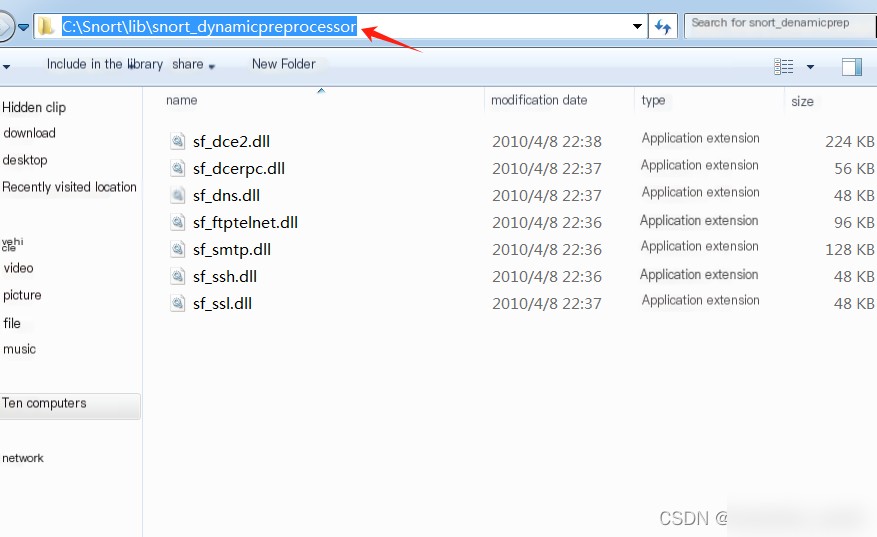

Delete the sf_sdf.dll file from the C:\Snort\lib\snort_dynamicpreprocessor directory, the image has been deleted

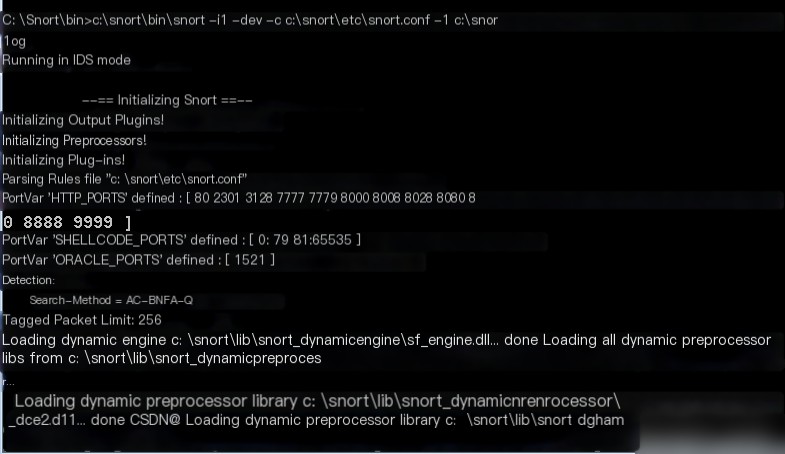

Enter again: c:\snort\bin\snort -i1 -dev -c c:\snort\etc\snort.conf -l c:\snort\log
Success screenshot

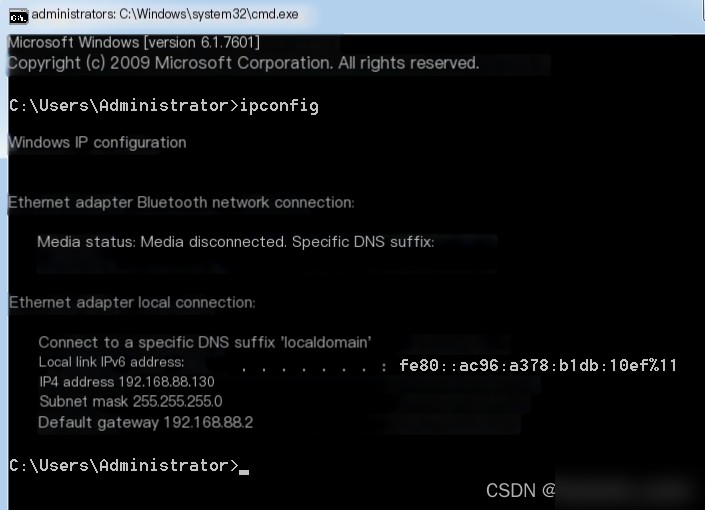

Check your IP address
Download and install Zenmap and scan the host
